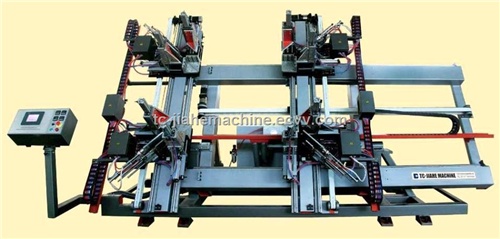

Four Point Welding Machine CNC (SHP4D-CNC-3000B)

1.Two-layer frames are welded when working once; production efficiency will be enhanced greatly.

2. Imported computer control system with high precise welding, easy operation and high stability.

3. Imported linear bearing system kept the running stable.

5. Measurement error compensation is available to increase welding precision.

5. Special locating system and clamp device ensure the measurement precision.

6. Special "Know - How" technique strengthen corner welding.

7. Multi-layer welding clamps with special locating system and clamp device ensure the measurement precision.

8. Suitable for high grade and mass doors & windows production.

9.Used for automatically realizing the welding of frame.

Input Voltage:380V/220V 3N～50Hz

Input Power:10(kw)

Air Pressure:0.4～0.6(MPa)

Air Consumption:80(L/min)

Welding Height:25～160(mm)

Welding Width(Max):130(mm)

Welding Range:400×400～1800×3000(mm)

Overall Dimension:5000×2000×2860（mm）

Weight:3000(kg)
