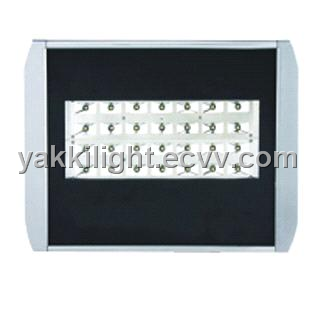

LED Tunnel Light (YK-SDD028WH005)

Prev Product

Next Product

Detailed Product Description

Product Features： The use of high-strength shell of aluminum die-casting，With good heat dissipation, the characteristics of beautiful shape。American imports of light chip beads，Has a high luminous intensity, energy saving, long-life, environmental protection, job security and so on.
Product use： Landscape lighting, city lighting engineering, stage lighting, architectural lighting, advertising lighting, tunnel lighting, underground passage lighting.
Product Appearance Description	1,Size	L390×W315mm
	2,Material	Aluminum shell, toughened glass
	3,Color	Silvery white
	4,Surface Treatment	Paint
	5,Connector type	N
Parameters Of Electrical products	1,Power	28×1W
	2,LED Quantity	28PCS
	3,InputVoltage	AC100～240V
	4,Light-emitting angle	15°,30°,45°
	5,Luminous flux of each LED Red:40～50Lm　Yellow:40～50Lm　　Blue:15～20Lm　Green:60～70Lm　 White:70～80Lm/80～90Lm/90～100Lm/100～120Lm WarmWhite:55～65Lm/65～75Lm/75～90Lm/90～100Lm
	6,Lamp’S Efficiency	﹥95％
	7,Color temperature Red:620～630nm　Yellow:588～593nm　Blue:460～470nm　Green:520～530nm　 White:6000～7000K　　WarmWhite:2700～3300K
	8,Chip Voltage Red/Yellow:2.0～2.5VDC Blue/Green/White/WarmWhite:3.0～3.6VDC
	9,Chip Current Red/Yellow:400mA Blue/Green/White/WarmWhite:350mA,
	10,Frequency Range	50～60Hz
	11,Power Factor(PF)	﹥90％
	12,Color Index(CRI)	Ra＞80
	13,Junction Temperature(Tj)	60 ° C ± 1 0% ( Ta= 25 ° C )
	14,Working Temperature	- 30 ° C ~ 40 ° C
	15,Working Humidity	10 % ~ 90 % RH
	16,Working Life	50,000 Hrs
	17,Projection distance	≧15M
	18,Control Mode	N
	19,Changes in the effect	N
	20,Protection level	IP68
Packaging	1,White box packaging 2,White box size: 3,Weight: 4,Carton size： 5,Each containing： 6,Gross weight：
Remark： Customers can customize the package size and appearance

Place of Origin:	China\|
Model No:	YK-SDD028WH005
Brand Name:	YAKKI
Payment Terms:	L/C,T/T(Bank Transfer),
Delivery Time:	7~14
