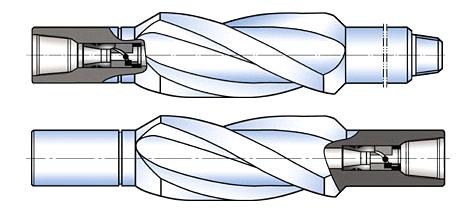

Float Valve Stabilizer

Detailed Product Description

Float valve stabilizer is mainly used in near bit type stabilizer While working for preventing from borehole deflection, when blowout or well kick takes place, the float valve stabilizer will automatically shut off inside bore of tool to avoid the accident. The tool owns features such as high strength, large flowing area, high temperature resistant and high pressure resistant, etc.
Technical specification and parameters (API)
Type of
  stabilizer
Stabilizer
Body O.D. (mm)
Stabilizer thread

Float valve assembly O.D.(mm)
Float valve assembly I.D.(mm)
FFWL711
φ228
7 5/8″REG
121
76
FFWL558
φ228
7 5/8″REG
121
76
FFWL444
φ228
7 5/8″REG
121
76
FFWL311
φ203
6 5/8″REG
121
76
FFWL241
φ178
4 1/2 ″IF
98
71
FFWL214
φ178
41/2″REG
88
71
FFWL152
φ127
31/2″REG
61
51
