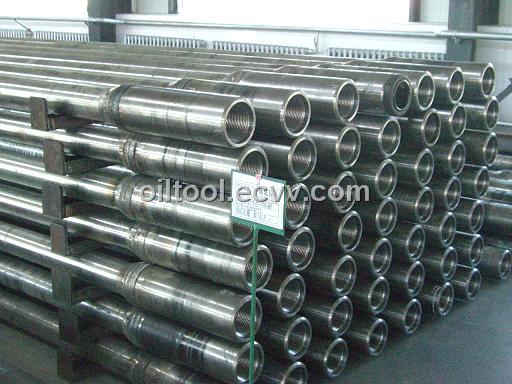

spiral drill collar

Detailed Product Description

Drill collar is mainly used to provide bit weight to drill bit so that drill piipe is in tension. Especially drill collar can keep drill bit centralized and hole tradck by large rigidity. Spiral drill collar is used to reduce contact area with hole so as to avoid efficienty bit stricking from differential pressure. Our drill colars are manufactured as per API spec.7.

Drill collar thread type	OD		ID		Length (mm)
NC23-31	mm	in	mm	in
NC26-35（23/8″IF）	79.4	3 1/8	31.8	11/4	9150
NC31- 41(27/8″IF)	88.9	31/2	38.1	11/2	9150
NC35-47	104.8	41/8	50.8	2	9150
NC38-50(31/2″IF)	120.7	43/4	50.8	2	9150
NC44-60	127.0	5	57.2	21/4	9150
NC44-60	152.4	6	57.2	21/4	9150 (or) 9450
NC44-62	152.4	6	71.4	2 13/16	9150 (or) 9450
NC46-62(4″IF)	158.8	61/4	57.2	21/4	9150 (or) 9450
NC46-65(4″IF)	158.8	61/4	71.4	2 13/16	9150 (or) 9450
NC46-67(4″IF)	165.1	61/2	57.2	2 13/16	9150 (or) 9450
N50-67(4 1/2″IF)	165.1	61/2	71.4	2 13/16	9150 (or) 9450
NC50-70(4 1/2″IF)	171.4	63/4	57.2	2 13/16	9150 (or) 9450
NC50-70(4 1/2″IF)	171.4	63/4	71.4	2 13/16	9150 (or) 9450
NC50-72(4 1/2″IF)	177.8	7	57.2	2 1/4	9150 (or) 9450
NC50-70(4 1/2″IF)	177.8	7	71.4	2 13/16	9150 (or) 9450
NC50-72(4 1/2″IF)	184.2	71/4	71.4	2 13/16	9150 (or) 9450
NC56-77	196.8	73/4	71.4	2 13/16	9150 (or) 9450
NC56-80	203.2	8	71.4	2 13/16	9150 (or) 9450
6 5/8″REG	209.6	81/4	71.4	2 13/16	9150 (or) 9450
NC61-90	228.6	9	71.4	2 13/16	9150 (or) 9450
7 5/8″REG	241.3	9 1/2	76.2	3	9150 (or) 9450
NC70-97	247.6	93/4	76.2	3	9150 (or) 9450
NC70-100	254.0	10	76.2	3	9150 (or) 9450
8 5/8″REG	279.4	11	76.2	3	9150 (or) 9450
