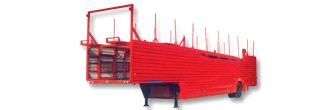

Car Carrier Semi-trailer

Detailed Product Description

specifications:

Overall size (mm)	13500×2490×3950
Axle	1
Axle load (kg)	8600
Axle base (mm)	8000+1360
No. of Plate spring (front/rear)	11+7
Tire spec	10.00-20/9.00-20/9.00R20/10.00R20
Tire	4
Tire tread (mm)	front/rear 1840
Total Weight (kg)	15480
Capacity load (kg)	7000
Complete vehicle kerb mass (kg)	8480
Maximum loading capacity of semi-trailer's bolster (kg)	6620
Approach /departure angle	-/11
Front/ rear overhang (mm)	/3390

Description:

M-LR9152TCL semi-auto carrier, one of the main products of ours,

made by advanced technique from French,which a unique hydraulic

lifting system and suspension system had been applied. Moreover,

its key parts have been equipped with high quality fittings purchased

from those famous brand both at home abroad.So that it could offer

safe and reliable driving, as well as a large loading capacity for 5-8

different type cars.
