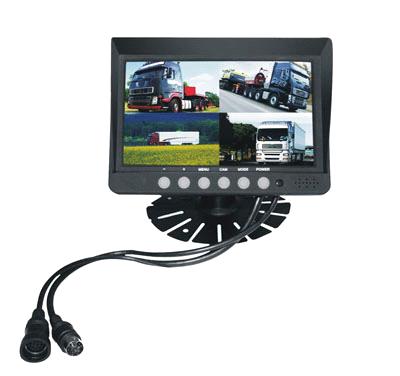

Quad screen 7 inch monitor

Detailed Product Description

Detailed Product Description

Quad screen LCD monitor support up to 4 camera input for truck

Main feature
Built-in quad control box function
Support four camera inputs
With remote controller
Single View/Split view/Quad view selectable
7 languages OSD display
PAL/NTSC optional, MIRROR/NORMAL image optional
Automatically turn on when the reversing gear is engaged
Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
With high-low voltage protection and short circuit protection

Technical data
7 inch TFT LCD monitor ,16:9
Wide view angle(CR>10): (up/down/left/right): 40/40/60/60
Resolution:400 R.G.B x234 dots
Color system: PAL/NTSC(selectable)
Power requirement: 12/24V DC
Power consumption: ≤5W
Operating temperature: -20 to +70
Storage temperature: -30 to +80
Dimension: 183 (L) x 125 (W) x 38 (D)

Place of Origin:	Guangdong in China
Model No:	JY-M070R
Brand Name:	LUVIEW
Payment Terms:	T/T(Bank Transfer),Western Union,
Minimum Order:	Piece/Pieces 20
Supply Ability:	Piece/Pieces\|10000\|Month
Delivery Time:	3-7 days
