Hebei Anping County Wedge Wire Screen Products Factory
China Manufacturer with main products: Water Well Screen, Wedge Wire Screen, Johnson Specialty screens, screen tube, screen pipe, screen plate, Screen Nozzle, wire wrapped screen |
Home
>Products Catalog > water well screen > 10inch Stainless Steel Deep Well Johnson Water Well Filter Screen

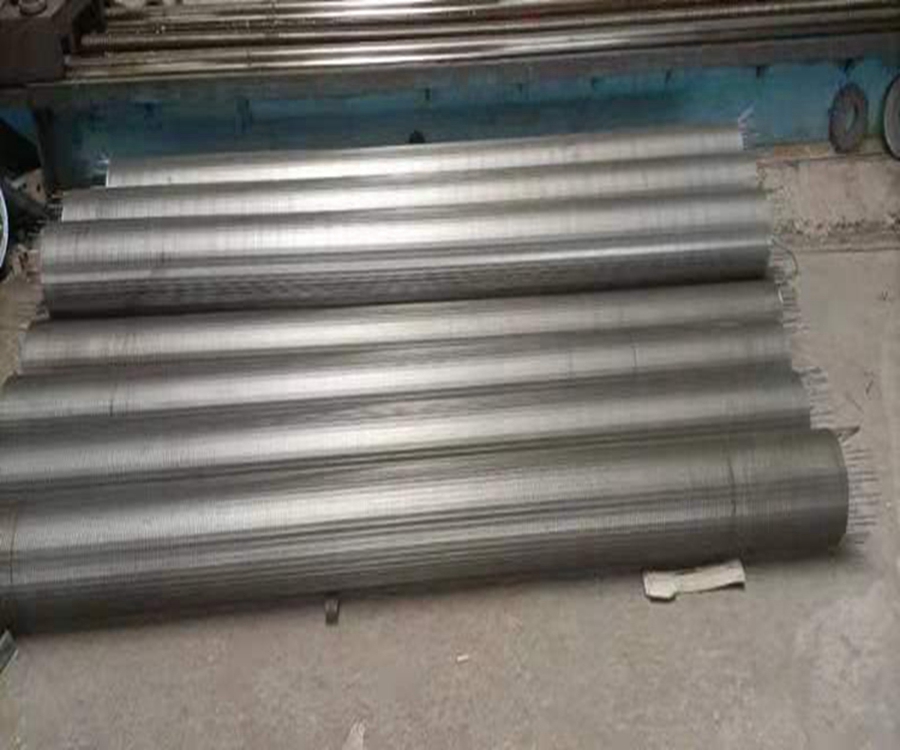

10inch Stainless Steel Deep Well Johnson Water Well Filter Screen
| Supply Ability: | 300 Piece(s) per Day |
|---|---|
| Shipping: | by sea, by air, by express, ty train |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden box, pallet, carton |
Quick Details
- Width: 273mm
- Material: ss304, ss316L, s321
- Type: Filter Cylinder
- Usage: Liquid Filter
- Brand Name: Anping County Wedge Wire Screen Products Factory
- Length: 10ft, 20ft
- Thickness: 5-10mm
- Filter Rating: 0.1-10mm
- Hole Shape: Square
- Model Number: SW013
- Certification: SGS CO
- Weight: 25-30kg/m2
- Dimension(L*W*H): OD273mmXL5.85mXS1mm
- Flow type: from outside to inside
- v profile wire: 3x4.6mm
- support rod: 3.8mm
- end connection: welded rings, threaded male and female coupling
- surface treatment: polished
- well deep: 200-650m
- Number of 1x20ft: 64pcs
Specifications
10inch Stainless Steel Deep Well Johnson Water Well filter Screen
Product Name: Water Well Screen, Johnson Screen Mesh,Water Filters, V Wire Welded Screen, Wedged Wire Screen,Strainer Pipe, Pipe Screen Screen Tube, Oil Tube, Welded Slot Steel Pipe, Dirll well filter equipment
Product Description
Water well screen

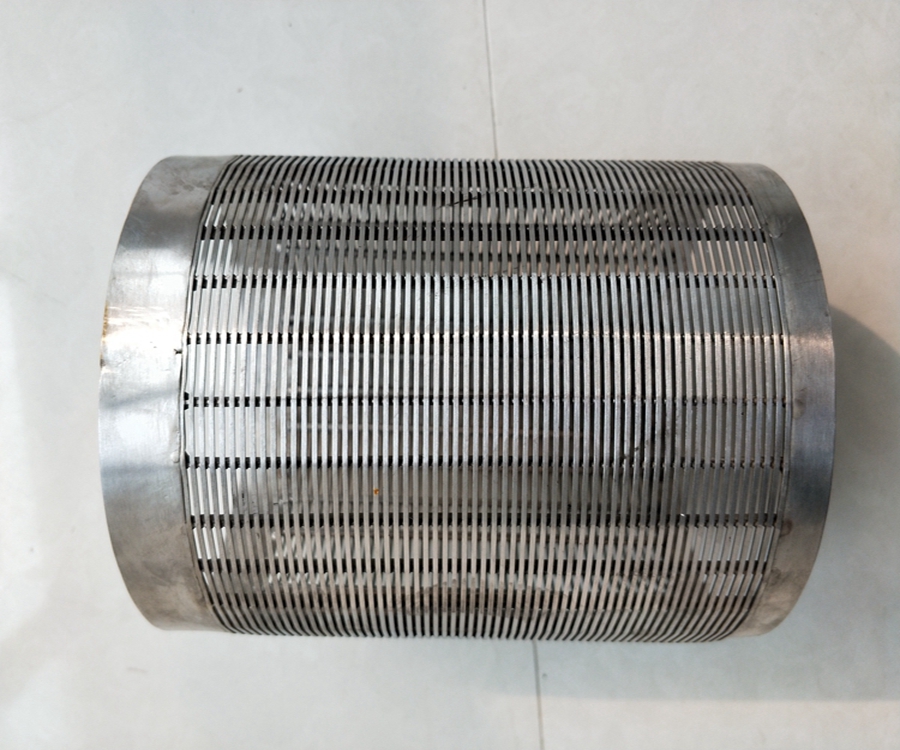

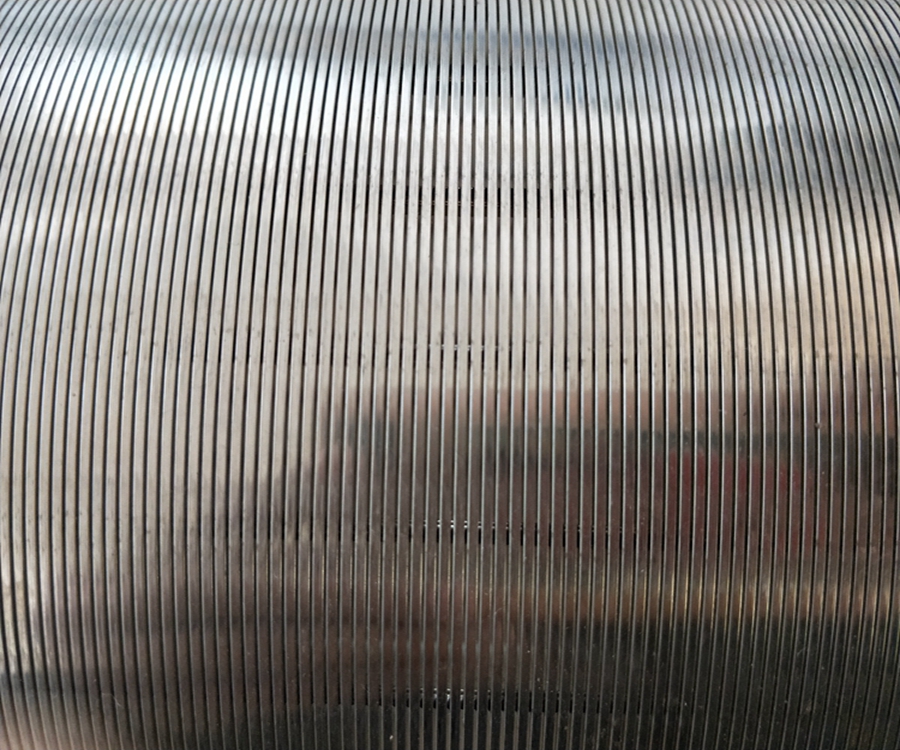

Water Well Screens consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so Water Well Screens has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage and make sure of the unimpeded water
ADvatage
MAXIMIZING FLOW RATES
When considering screens of equal length, diameter and slot size, flow rates through V-shaped well screens can be;
Three times higher than bridge-slot screens
Nine times higher than slotted casing
NON-CLOGGING SLOT

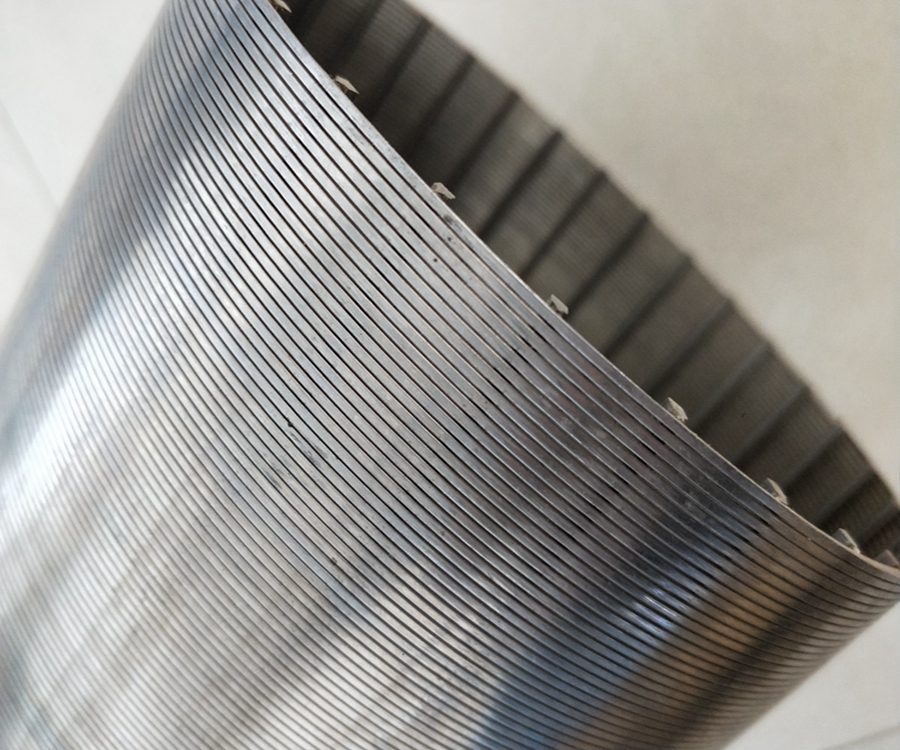

Continuous-slot well screens have V-shaped openings that narrowest at the outer face and widen inwardly, thus, oversized particles are retained outside the screen and particles passing through the narrow outside opening can enter the screen.
REDUCTIONS in OPERATING COSTS
by using a Continous-slot well screen, savings can be achieved in pumping costs. Lower through-slot velocities mean that pressure drops are minimized, therefore;
Drawdowns are reduced.
Less energy is needed for pumping.
Flow rates are increased.
Less sand in the water reduces wear on the pumps.
Packing

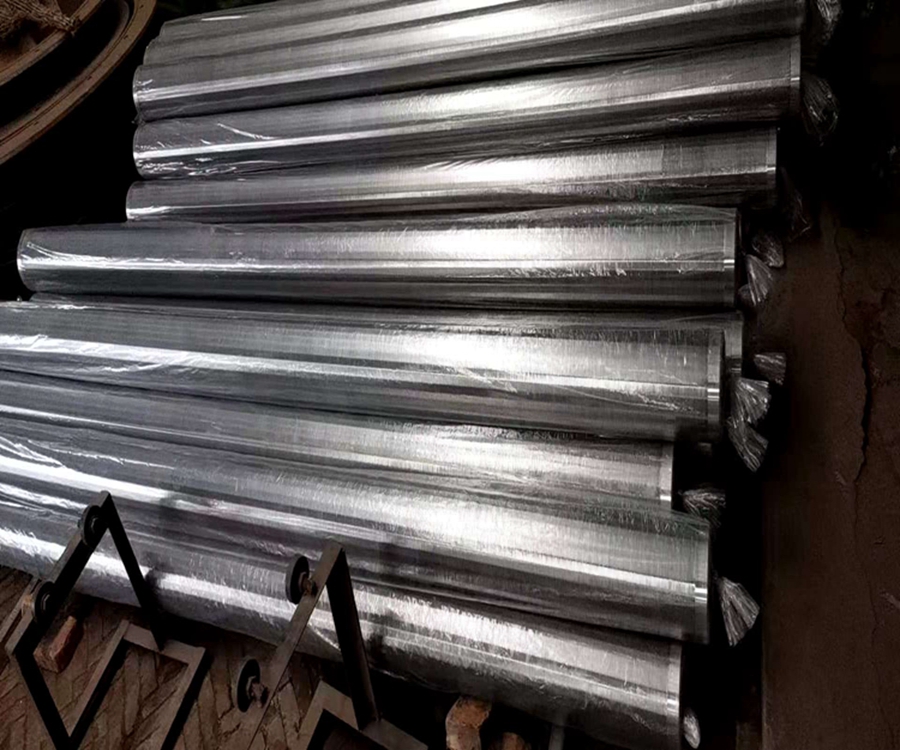

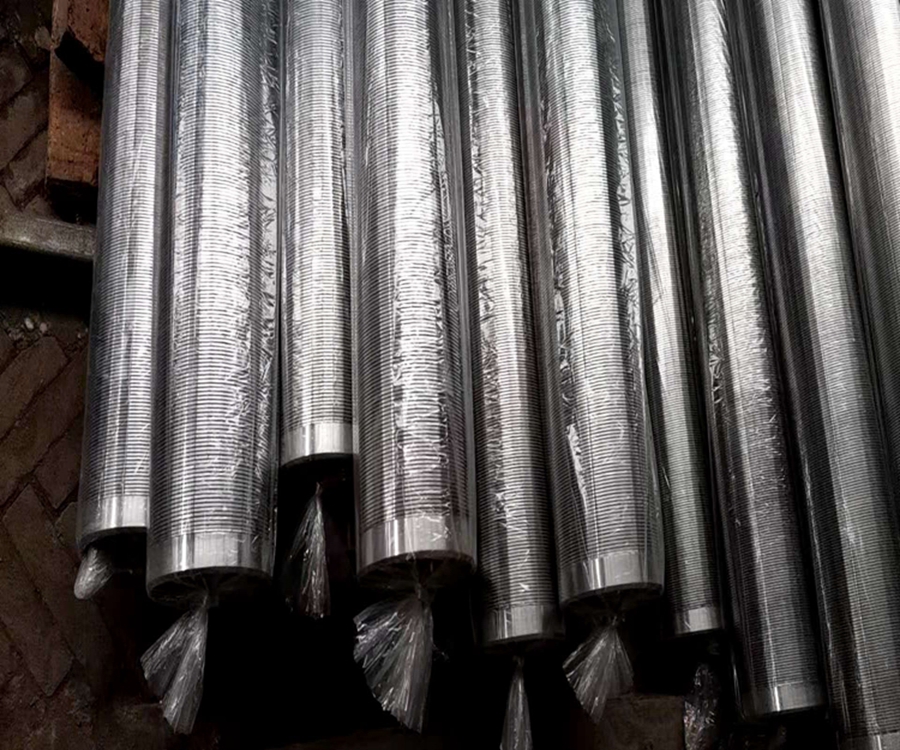

Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly marked with:
& identification mark of manufacturerHuaDong Brand
2. Batch number
3. Date of manufacturer
4. Material
5. Collapse pressure&Tensile strength
Water Well Screens consist of V-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so Water Well Screens has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage and make sure of the unimpeded water
Specification:
SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS (mm) |
4 |
117 |
0.040 |
3 |
395 |
6 |
2.2*3.0 |
3.8mm/22 |
4 |
114.3 |
0.040 |
3 |
395 |
6 |
2.3*3.0 |
3.8mm/22 |
6 |
168.3 |
0.040 |
3 |
252 |
8 |
2.3*3.5 |
3.8mm/32 |
8 |
219.1 |
0.010 |
3 |
399 |
10.5 |
3.0*5.0 |
3.8mm/48 |
8 |
219.1 |
0.020 |
3 |
370 |
10.5 |
3.0*5.0 |
3.8mm/48 |
8 |
219.1 |
0.040 |
3 |
323 |
10.5 |
3.0*5.0 |
3.8mm/48 |
10 |
273.1 |
0.010 |
3 |
206 |
11 |
3.0*5.0 |
3.8mm/50 |
10 |
273.1 |
0.020 |
3 |
191 |
11 |
3.0*5.0 |
3.8mm/50 |
10 |
273.1 |
0.040 |
3 |
167 |
11 |
3.0*5.0 |
3.8mm/50 |
ADvatage
MAXIMIZING FLOW RATES
When considering screens of equal length, diameter and slot size, flow rates through V-shaped well screens can be;
Three times higher than bridge-slot screens
Nine times higher than slotted casing
NON-CLOGGING SLOT
Continuous-slot well screens have V-shaped openings that narrowest at the outer face and widen inwardly, thus, oversized particles are retained outside the screen and particles passing through the narrow outside opening can enter the screen.
REDUCTIONS in OPERATING COSTS
by using a Continous-slot well screen, savings can be achieved in pumping costs. Lower through-slot velocities mean that pressure drops are minimized, therefore;
Drawdowns are reduced.
Less energy is needed for pumping.
Flow rates are increased.
Less sand in the water reduces wear on the pumps.
Packing
Single with bubble bag and then in wooden case(fumigation certificate). Each case is clearly marked with:
& identification mark of manufacturerHuaDong Brand
2. Batch number
3. Date of manufacturer
4. Material
5. Collapse pressure&Tensile strength
Materials: 304 302 304L 316 316L stainless steel wire and low carbon wire, can be made according to the customers' requirement.
Characteristics: the welded stainless steel water well screen is made up of rods and warp. the rod can be round wire, triangular wire or trapezoid wire. the warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Min slot 0.15mm
Styles of connection: by welding or by threaded male/female coupling.
Standard length: 3m/5.85m
Uses: the strainer is a kind of filtered water tubing with the perforation.It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: the petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.
