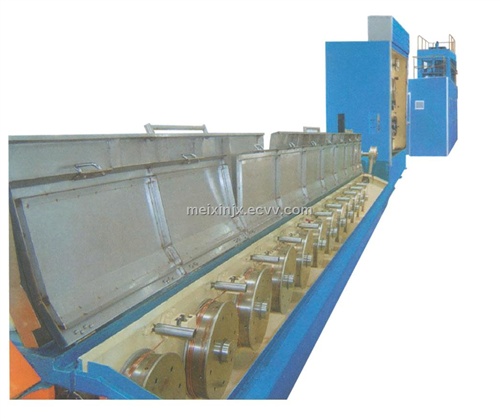

Rod Break Down Machines (GM-13D)

Prev Product

Detailed Product Description

Rod Break Down Machine Specifications :

1. MAIN TECHNICAL PARAMETER

1.1	Inlet wire	φ8mm
1.2	Outlet wire	φ1.20mm－φ4.0mm
1.3	Max speed of drawing	20m/s
1.4	Drawing block size	φ450mm
1.5	Max number of passes	13(Φ55×35)
1.6	Main power	380v-3P-60Hz
1.7	Dual-reel spooling bobbin size	Φ610(OD) x 420(WD) x Φ 130(Bore)
1.8	Main motor power	250kW (DC)
1.9	Finishing capstan and anneal motor constant speed wheel	75kW (DC)
1.10	Power of motor for dual-reel take up	30kW×2 (AC INVERTER )
1.11	Anneal unit Transformer power	450kva
1.12	Steam generator	60kw

2. MACHINE COMPONENTS

2.1	Rod suplly portal pay-off and guide roller	1set
2.2	Main drawing machine	1set
	Main motor	DC 250Kw
	Finishing motor	DC 75Kw
	Oil pump	2.2Kw-2set
2.3	Continuous annealing device	1set
	Annealinr trans power	450KVA
	Cooling water system	Pump : 2.2Kw + Fan : 1.1Kw
	Steam boiler	60Kw
24	Accumulator	1set
2.5	Φ610 automatic dual-reel take-up	1set
	Drive motor	30Kw-2set
2.6	Dog mould-piercing mill	1set
	Main motor	1.5Kw AC

3. Electric control system

Main Power

Control power

380v X 3p X50/ 60Hz

220v X 3p X50/ 60Hz

4. Others

Used Bearing

Testing

All bearing NSK(Made in Japan)

In manufacturing company

Place of Origin:	Jiangsu in China
Model No:	GM-13D
Brand Name:	GM
FOB Price:	100000-326580 USD SHANGHAI
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|2\|Year
Package:	ACCORDING TO CUSTOMERS' REQUIREMENTS
Delivery Time:	SIX MONTHS
