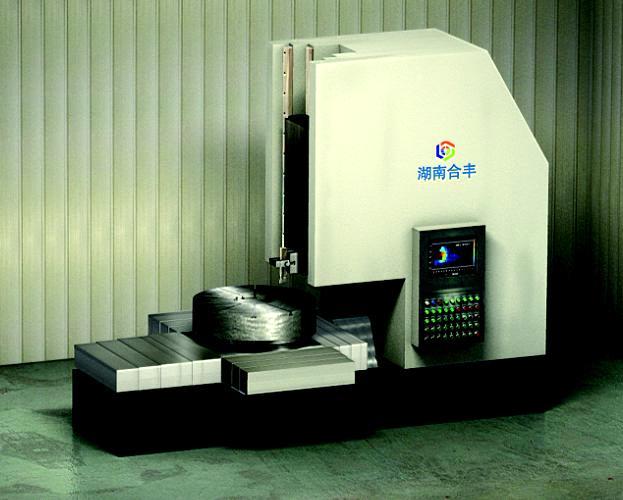

CNC Slotting Machine (SKB5050A)

Detailed Product Description

1. CNC slotting machine SKB5050A is applied to machine the surface, internal key slots, spline holes, square holes and polygonal holes for the piece-production and small-batch production.

2. The machine adopts the NC closed-loop system. The main movement is driven by the servo hydraulic cylinder and can be adjusted stepless,

3. The worktable can move horizontally, vertically, and rotately. The CNC system drives the screw by controlling the servo motor and then finishes the feeding process. The worktable can be graduated at random. It’s indexing accuracy has reached 15, which ensures the machining precision of the machine.

4. The structure of the machine has been optimal designed, with characteristics of convenient operation, steady running and high precision machining.

5. The leading screw and guide ways of the machine are both equipped with central lubricant devices, which can adjust the lubricant timingly and quantitively. This makes the machine work in a super state.

Technical parameter

Max. stroke of the ram-- 500mm

Max. diameter of the worktable --1000mm

Horizontal stroke of the worktable-- 660mm

Vertical stroke of the worktable-- 1000mm

Distance from the bearing surface to front side of body-- 1000mm

Move and return times of ram-- 9,12.5,18,25,36,50 times /minute

Horizontal and vertical device feed quantity range of worktable-0～1.2mm (stepless)/the ram goes and returns one time

Min. graduation unit of the rotary of worktable-- 0.001^o

Max. cutting force-- 16000N

Power of main motor-- 7.5kw

Net weight of the machine--（approx.）10T
