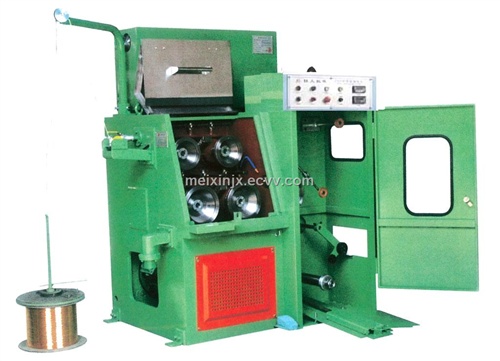

24d Fine Wire Drawing Machine (GM-24D)

Detailed Product Description

1. MAIN TECHNICAL PARAMETER

1. 1	Inlet wire	Φ0. 5~1. 0mm
1. 2	Outlet wire	Φ0. 08mm~φ0. 3mm
1. 3	Cotrol system	Traditional analog type
1. 4	Max speed of drawing	2000m/min
1. 5	Drawing block size	Φ150mm
1. 6	Max number of passes	24
1. 7	Drawing Dies NO. :	24
1. 8	Slip Ratio of M/C	13%
1. 9	Fix Speed capstan slip ratio	8%
1. 10	Frame:	Ironed cast
1. 11	Capstan :	Ceramic plasma or tungsten
1. 12	Fix speed capstan dia. :	159mm(max)
1. 13	Spooler dia. :	300mm(max)
1. 14	Take-up type:	Shaft type
1. 15	Transmission type:	Flat belts
1. 16	Tension control	Weight balance type
1. 17	Brake	Megnetic brake
1. 18	Main motor power	11kW
1. 19	Power of motor for dual-reel take up	3. 7kW
1. 20	Loading capacity:	50KG
1. 21	Main power	380v-3P-50/60Hz
1. 22	Weigh	1800kg
1. 23	Dimension	2050x1600x1900mm

2. MACHINE COMPONENTS

3. Electric control system

Main Power

Control power

Motor driver

380v X 3p X 50/60Hz

220v X 3p X 50/60Hz

Best In China

4. Others

Used Bearing

Testing

All bearing NSK(Made in Japan)

In manufacturing company
