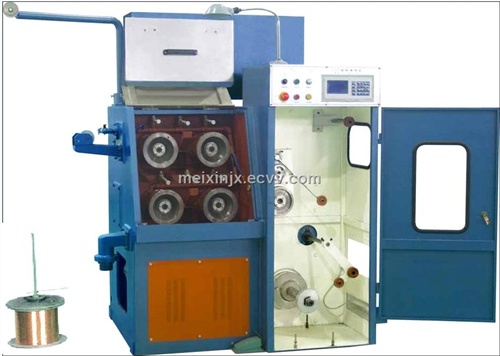

22D Cable Wire Making Machinery

22D Cable Wire Making Machinery GM-22D

22D Cable Wire Making Machinery

  Prev Product Contact Now Next Product

Detailed Product Description

1. MAIN TECHNICAL PARAMETER
1.1
Inlet wire
Φ0.6~1.2mm
1.2
Outlet wire
Φ0.08mm~φ0.3mm
1.3
Cotrol system
Traditional analog type
1.4
Max speed of drawing
2000m/min
1.5
Drawing block size
Φ199mm
1.6
Max number of passes
22
1.7
Drawing Dies NO.:
22
1.8
Slip Ratio of M/C
15%
1.9
Fix Speed capstan slip ratio
6%
1.10
Frame:
Ironed cast
1.11
Capstan :
Ceramic plasma or tungsten
1.12
Fix speed capstan dia.:
159mm(max)
1.13
Spooler dia.:
300mm(max)
1.14
Take-up type:
Shaft type
1.15
Transmission type:
Flat belts
1.16
Tension control
Weight balance type
1.17
Brake
Megnetic brake
1.18
Main motor power
11kW
1.19
Power of motor for dual-reel take up
3.7kW
1.20
Loading capacity:
50KG
1.21
Main power
380v-3P-50/60Hz
1.22
Weigh
1800kg
1.23
Dimension
2050x1600x1900mm
2. MACHINE COMPONENTS
2.1
Wire suplly
1set
2.2
Main drawing machine
1set
Main motor
11Kw
2.3
Take-up motor
3.7Kw-1set
2.4
Drive Electric Box
1 set
3. Electric control system
Main Power
Control power
380v X 3p X50/ 60Hz
220v X 3p X 50/60Hz
4. Others
Used Bearing
Testing
All bearing NSK(Made in Japan)
In manufacturing company
Place of Origin:Jiangsu in China
Model No:GM-22D
Brand Name:GM
FOB Price:7360-7980 USD SHANGHAI
Payment Terms:L/C,T/T(Bank Transfer),
Minimum Order:Set/Sets 1
Supply Ability:Set/Sets|100|Month
Delivery Time:ONE WEEK
