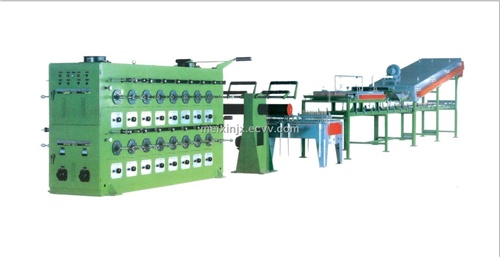

Continuous Annealing Tin-Coating Macine (GM-40H)

Continuous Annealing Tin-Coating Macine (GM-40H) GM-40H

Continuous Annealing Tin-Coating Macine (GM-40H)

  Prev Product Contact Now Next Product

Detailed Product Description

Continuous Annealing tin-coating Machine Specifications:
1, Add one room inside the annealer, can make the temperature impartial distribution , 2, Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time, 3, Spooler arranged in double layer can save space.
Terms of Payment: L/C, T/T
Minimum Order: 1 Set/Sets
Delivery Lead Time: 30days
Machine type TCB-40H TCB-40H TCB-40H
Single spooler drive By torque motor 1. 2-1. 5N. M 1. 2-1. 5N. m/1. 5-1. 8N. M 1. 5N/1. 8N. M
Booster 0. 5KW 0. 5KW/0. 75KW 0. 75KW
Length of annealing tank 4. 5m 6m 8m
Wire inlet 40 40 40
Drawing line speed 100-280m/min 70-280m/min 110-180m/min
Spooler capacity 20-35Kg 20-35Kg 20-35Kg
Wire finished Φ0. 1-Φ0. 4mm Φ0. 1-Φ0. 6mm Φ0. 3-Φ0. 9mm
Annealing method tubular annealing tubular annealing tubular annealing
Tin-coating type dual tinning tank arrange in horizontal type
Take-up type Torque motor1. 2-1. 5NM Torque motor1. 5-1. 8NM Torque motor2. 5NM
Traveling control Decelerate motor, loading & unloading unaided traversing
Power consumption 72KW(max) 83KW(max) 90KW(max)
Power voltage 380V/50/60Hz 380V/50/60Hz 380V/50/60Hz
Machine dimension 19. 5m×1. 6m×2. 2m 21m×1. 6m×2. 2m 23m×1. 6×2. 2m
Machine weight 3200kg 3600kg 4000kg
Wire inlet 0. 1-0. 15mm 0. 1-0. 2mm 0. 4-0. 45mm
0. 15-0. 2mm 0. 2-0. 3mm 0. 45-0. 5mm
0. 2-0. 25mm 0. 3-0. 4mm 0. 5-0. 55mm
0. 25-0. 32mm 0. 4-0. 5mm, 0. 5-0. 6mm 0. 55-0. 6mm
　 　 0. 32-0. 4mm 　 　 0. 6-0. 9mm
Annealing temperature 380-440℃ 400-500℃ 600-650℃
440-480℃ 450-550℃ 650-700℃
480-520℃ 500-600℃ 700-750℃
520-580℃ 600-700℃ 750-800℃
　 700-800℃ 　
Line speed 220-280m/min 220-280m/min 150-180m/min
180-220m/min 140-150m/min 130-150m/min
140-180m/min 90-100m/min 120-130m/min
100-140m/min 80-90m/min, 70-80m/min 110-120m/min
Standard output(24h/day 90%) Φ0. 1mm, 1010kg Φ0. 1mm, 1014kg Φ0. 4mm, 6019kg
Φ0. 1mm, 1010kg Φ0. 2mm, 2897kg Φ0. 45mm, 6512kg
Φ0. 15mm, 1790kg Φ0. 3mm, 4563kg Φ0. 5mm, 7519kg
Φ0. 20mm, 2600kg Φ0. 4mm, 5215kg Φ0. 55mm, 8216kg
Φ0. 25mm, 3160kg Φ0. 5mm, 7243kg Φ0. 6mm, 8500kg
Φ0. 32mm, 3700kg Φ0. 6mm, 9127kg 　
　 　
Place of Origin:Jiangsu in China
Model No:GM-40H
FOB Price:19860-232680 USD SHANGHAI
Payment Terms:L/C,T/T(Bank Transfer),
Minimum Order:Set/Sets 1
Supply Ability:Set/Sets|39|Month
Delivery Time:ONE MONTH
