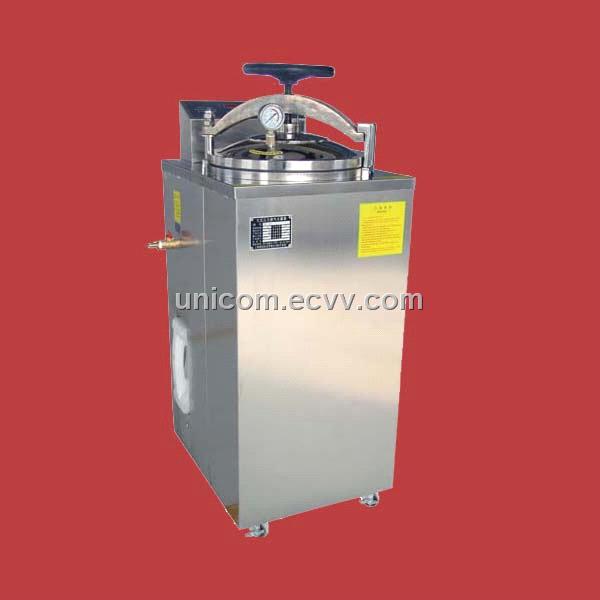

Autoclave (YXQ-LS-75G)
PRODUCT CHARACTERISTIC:
Auto-control type with drying function
Structure of handwheel type quick-door-open safety interlock device (accord with the 49th requirement of Vessel Regulations)
Material: outer and chamber are made of high quality stainless steel SUS304, acidproof, alkali resistance, anti-corrosive
Microcomputer intelligent control
Pressure safety interlock device, over temperature protection device
Auto-raising type packing ring,exhaust cold air automatically
Auto-exhause when over pressure, low water level alarm, auto-control when lack of water
Temperature range (109-135), sterilization time range (4-120min), drying time range (drying after sterilization) (30-240min)
Inner circulation exhaust type, with 3L steam collection bottle
Automatic inlet, heating, sterilization, exhaust and drying
Buzzer reminds after work and close-down automatically
Work process of sterilization and drying
a: sterilization temperature decreases to 102, then exhaust and drain
b: sterilization, exhaust and drain after sterilization
c: sterilization, exhaust, drain, drying
Technical Parameters:
Model: YXQ-LS-75G
Volume: 75L
Max. working temperature: 135
Max. working pressure: 0.22MPa
Power Consumption of sterilization: 3.2KW
Power Consumption of drying: 0.8KW
Power supply: 220V10%/50Hz2%
DIM. Exterior (mm): 600*500*1150
DIM. Interior (mm): 350*625
DIM. Basket (mm): 360*280*2
| Place of Origin: | Shandong in China |
| Model No: | YXQ-LS-75G |
| Brand Name: | UNICOM-OPTICS |
| Volume: | 75L |
| Max. working temperature: | 135 |
| FOB Price: | 2717.00-2977.00 USD Qingdao port |
| Payment Terms: | T/T(Bank Transfer), |
| Minimum Order: | Set/Sets 1 |
| Supply Ability: | Set/Sets|5000.00|Year |
| Package: | Carton |
| Delivery Time: | 8 Days |
