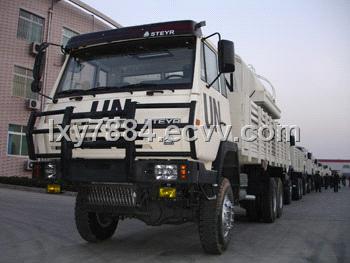

All Wheel Drive Vehicle

Detailed Product Description

Type of vehicle		all-wheel drive vehicle--04
Brand		STEYR
Truck model		ZZ2252M3450B
Sales Code		S280/O34/6*6
Drive style		6*6
Dimension (lengthwidthhighth)(mm)		763724803100
Gross weight (kg)		25000/19490
Kerb weight (kg)		9250
Max. Speed (Km/h)		86
Wheelbase (mm)		3375+1400
Engine	Model	WD615. 77A
	Rated power (kw/r/min)	206/2200
	Max. Torque (N. N/r/min)	1160/1100-1600
Clutch		Single-plate dry clutch D420mm
Gearbox		Fuller 9
Driving axle		central single reduction with planetary wheel reduction (Optional ratio: 4. 8/5. 73/6. 72)
Steering		ZF8098
Transfer case	Model	ZQC1200
	Gear ratio high grade	1
	Gear ratio low grade	1. 75
Brake type	Driving brake	Dual circuit compressed air brake
	Parking brake	Hand brake, spring energy air cut brake
Cab		STEYR standard cab, cab over engine, all-steel and tilting forward 70 degree
Electric system		24V negative grounded
Tyre		12. 00-20/14. 00-20
Fuel tank (L)		200/380
Other models of the same wheelbase(cab types)		ZZ2252M3450F (STEYR semi-height ) ZZ2252M3450W (STEYR lengthen)
