Bluetooth Barcode Scanner(LASERZ3000)
1: Product Introduction
1.1: SynopsisSUMLUNG Bluetooth barcode scanner. It saves 30%~50% costs compared with traditional Bluetooth barcode scanner.
1.2: Specifications
Z3001 (LASER) Wireless scanner
Voltage & current:
2 x AA(Recommended 2500mAH NiMH)
Battery specifications:
32,000+ @(2500mAH NiMH)
Radio:
Bluetooth, Class 2, Version 2.0
Radio range:
10 m;(typical indoor environment 12 m,typical outdoor environment 18 m)
Light source:
650 nm visible laser diode (VLD)
Depth of scan field:
10 – 220 mm (UPC/EAN 100%, PCS=90%)
Scan angle:
42°
Scan rate:
40 scans per second
Minimum bar width
0.125 mm (5 mil) (0.1 mm actually)(Code 39, PCS=90%)
Print contrast
Min. 30% @ UPC/EAN 100%
Decode capability:
1D barcodes
Dimensions:

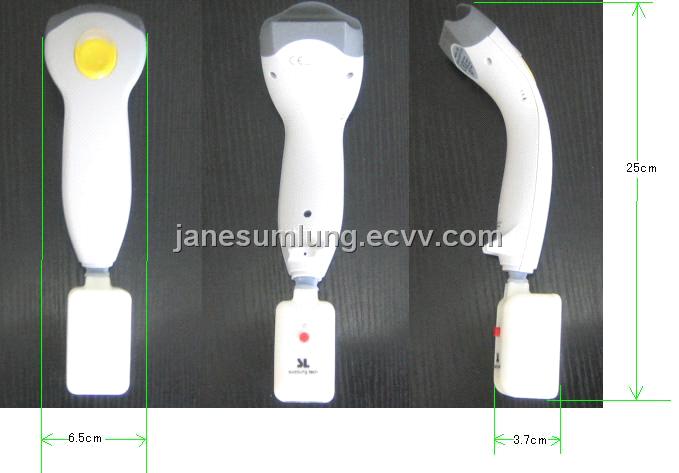

(L)250 × (W)64.4 × (H)65 mm (device only)
Weight:
170 g (device only)
1.4: How to useHow to scan: Turn on——run SumlungScan——Start your Application——Scan barcodes and it will send data to input focus automatic.
1.4: Advantage Cost-effective
Simple operation
Save 30%~50% costs
Wide use scope
Creative
