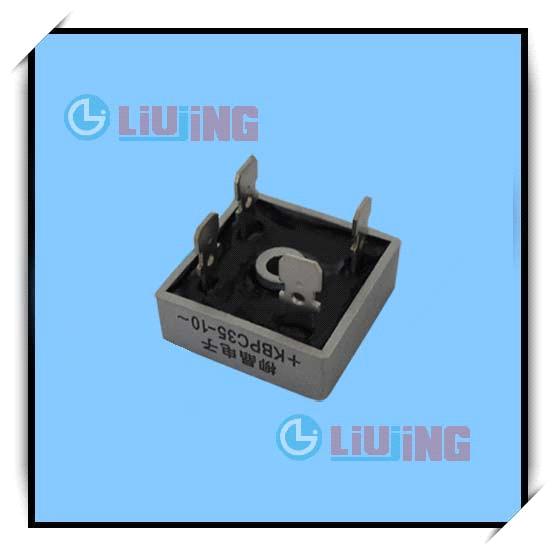

Single Phase Bridge Diode Rectifier (KBPC3510)

Detailed Product Description

 Characteristic    Application
 Current: 5-250 A
 Voltage: 100-1600 V
 Miniature universal dimensions, welding technique under the
protection of vacuum and hydrogen gas
 Glass passivated diode chips
 Excellent force and volume ratio
 High thermal conductive sealing package
Rectifier current
 Industrial automatic control
Digital-controlled machine and remote control system
Instruction
  Parameter Table
SINGLE-PHASE BRIDGE RECTIFIER CHARACTERISTICS
Type
Id
IF(AV)
VRRM
IRRM
Viso
Outline
A
A
V
mA
V(AC)
KBPC5A-35A
5-23
2.5-17.5
100-1600
5
2500
28×28×22
QL 5A-50A
5-50
2.5-25
100-1600
5
2500
32×32×34
QL 5A-50A
5-50
2.5-25
100-1600
5
2500
32×60×25
QL 40A
40
20
100-1600
7
2500
60×100×55
QL 60A
60
30
100-1600
7
2500
60×100×55
QL 100A
100
50
100-1600
7
2500
60×100×55
QL 150A
150
75
100-1600
10
2500
132×145×75
QL 200A
200
100
100-1600
10
2500
132×145×75
QL 250A
250
125
100-1600
10
2500
132×145×75
THREE-PHASE BRIDGE RECTIFIER CHARACTERISTICS
Type
Id
IF(AV)
VRRM
IRRM
Viso
Outline
A
A
V
mA
V(AC)
SQL 40A
40
14
100-1600
7
2500
60×100×55
SQL 60A
60
20
100-1600
7
2500
60×100×55
SQL 100A
100
34
100-1600
7
2500
60×100×55
SQL 150A
150
50
100-1600
10
2500
132×145×75
SQL 200A
200
67
100-1600
10
2500
132×145×75
SQL 250A
250
84
100-1600
10
2500
132×145×75



If
Place of Origin:Zhejiang in China
Model No:KBPC3510
Brand Name:Liujing
FOB Price:1-3 USD Ningbo
Payment Terms:T/T(Bank Transfer),
Minimum Order:Pack/Packs 1000
Supply Ability:Piece/Pieces|1000000|Month
Package:Carton
Delivery Time:20Days
