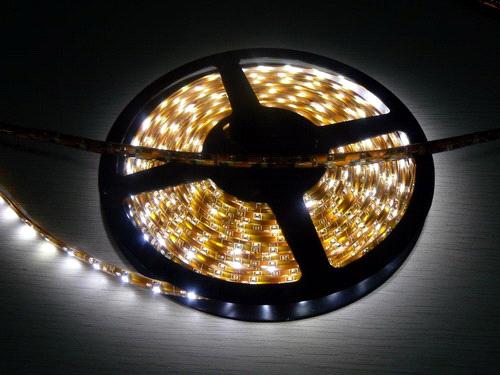

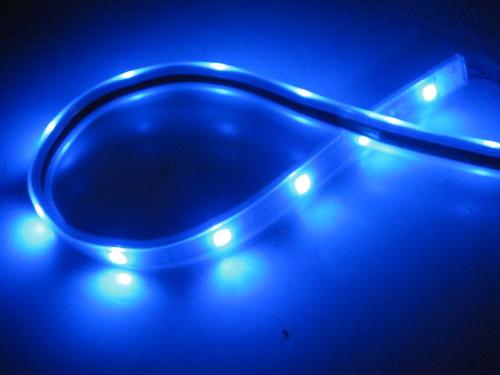

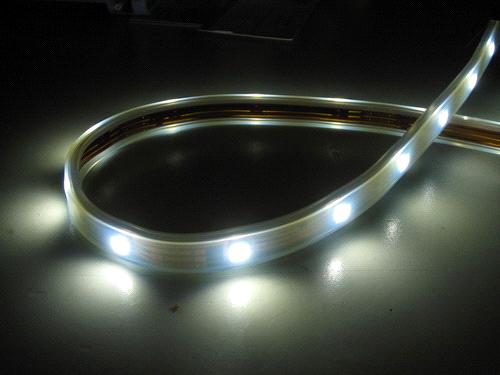

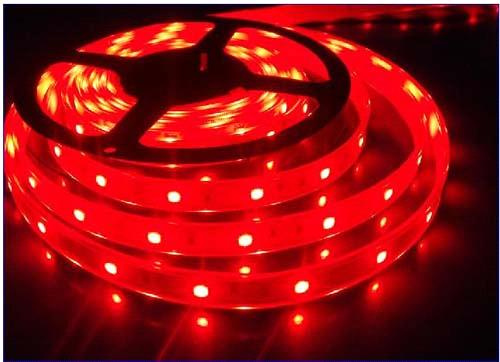

LED Flex Ribbon Strips (RR-5050-30-100D)

Model No.	Size(MM)	LED	Power	length(mm)	Color	MCD/led	Input(v)
RR-5050R-30-100D	10*300*2	30	7.2W	1000	R	2500	DC12
RR-5050Y-30-100D	10*300*2	30	7.2W	1000	Y	2500	DC12
RR-5050B-30-100D	10*300*2	30	7.2W	1000	B	3000	DC12
RR-5050G-30-100D	10*300*2	30	7.2W	1000	G	5000	DC12
RR-5050W-30-100D	10*300*2	30	7.2W	1000	W	4000	DC12
RR-5050RW-30-100D	10*300*2	30	7.2W	1000	RW	4000	DC12
RR-5050E-30-100D	10*300*2	30	7.2W	1000	E	3500	DC12
RR-5050P-30-100D	10*300*2	30	7.2W	1000	P	2700	DC12
RR-5050RGB-30-100D	10*300*2	30	7.2W	1000	RGB	3000	DC12

Ideal for signage, channel letters, symbols, accents, borders, Architectural lighting, Landscape light, Step lighting Decorative light, especially for narrow area lighting and more.

This product adopts super bright chip as light source and super flexible FPC board as base

The min cutting unit is 3 Leds and you can cut at random according to the practical requirement.

Its backside has the Double-glue which can ripe then stick the paste on the board.

Model No. RR-5050-12-30

Angle Beam: 120°, long life, high intensity and stability.

Standard Lenght/roll: 5M

LED NO/roll: 60pcs/5meters

The width: 10mm

Working Voltage: 12V DC

Module: 5050 LED

MCD: 1500MCD/LED (white)

Power: 2.88W/meter

IP degree: IP68

Applications:

1) Architectural decorative lighting

2) Archway, canopy and bridge edge lighting

3) Amusement park, theater and aircraft cabin mood lighting

4) Emergency hallway lighting

5) Auditorium walkway lighting

6) Stairway accent lighting

7) Concealed lighting

8) Backlighting for signage letters

9) Channel letter lighting

10) Emergency exit path lighting

11) Cove lighting

A. Model No.: RRLF5144HL

B. Rope LED uses super high-intensity LEDs in red, yellow, white, green, blue, RGB and RGBY changing.

C. Rope LED is available in round and rectangular forms both are waterproof and can be used indoor or outdoor.

D. Rope LED is molded to refract and spread light in the clear transparent flexible housing.

E. Standard package is 50 & 100 meters per roll, but it can be made according to your desired length.

F. Rope LED is available in standard 120/240V AC or optional 24V DC configuration.

Application

Lighting building outlines; Amusement themes; Holiday light sculptures; Cove lighting; Architectural lighting; Trade show lighting; Bars and night clubs. More flexible, used for indoor and outdoor project, Architectural lighting, Lighting building outlines, Holiday light sculptures etc, cut at 2 meters.
