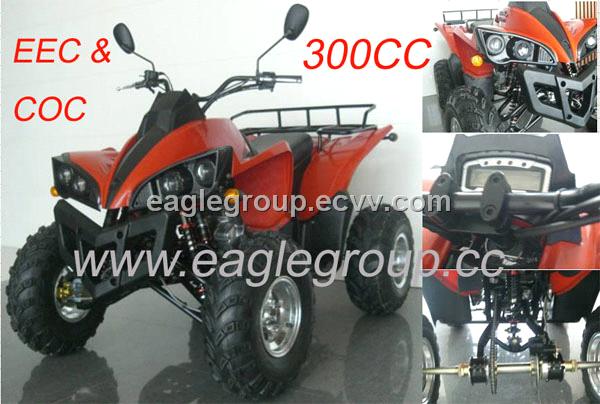

YG-300E-A1 (300cc,single cylinder, air-cooled)

YG-300E-A1

1) Dimensions (L x W x H): 1790 x 1230 x 1255mm
2) Wheelbase: 1250mm
3) Seat Height: 880mm
4) Min.Ground clearance: 290mm
5) Rated Loading: 150kg
6) Max. Ppeed: 95km/h
7) Tires:
a) Front Wheels: 23 x 7 - 10
b) Rear Wheels: 22 x 10 - 10
8) Break Type (F/R): disc/disc
9) Fuel Tank Capacity: 9.8L
10) Power Source: 12V, 14Ah
11) Min. Turning Radius: 3000mm
12) Engine Type: 300CC, single cylinder, air-cooling, 4-stroke
13) Cylinder Size: 78 x 61.2mm
14) Compression Proportion: 8.9:1
15) Displacement: 292ml
16) Max Power: 16.2kW/7,500r/min,
17) Max. Torque: 20.0N.m/ 6000r/min
18) Transmission Mode: chain
19) Min. Climbing degree: 22 degree
20) Ignition Mode: CDI
21) Transmission: 4 gears with one reverse gear, manual clutch
22) Lubrication: press splash
23) Start Mode: electric

Outer Packing:
Carton Dimensions: 1775 x 1110 x 850mm

Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 26 units
Qty/40' HQ: 39 units

Payment Terms:	L/C,T/T(Bank Transfer),Western Union,
Delivery Time:	about 15 work days
