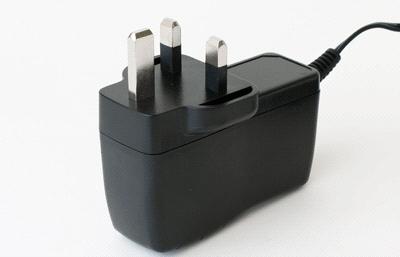

Switching Mode Power Adapter

Detailed Product Description

Electrical Specifications(AC Input)

·Rated Input Voltage:100~240V AC

·Input Current:0.75A(rms) @ 115V AC

0.35A(rms) @ 230V AC

·Input Frequency:50~60Hz

·Inrush Current: Max.50A @ 230V Cold Start

·Low Standby Power 0.3W Max

Environmental Specifications

·Operating Temperature:0℃~40℃ @ Max.Load

·Non-operating Temperature :-20℃~ 60℃

·Humidity:5% to 95% Non-condensing

Reliability Specifications

·Leakage Current:Less than 0.25mA (264V AC)

·Dielectric Withstand (Hi-pot): 4242V DC/1 min/5mA

·MTBF:30000H-100000H by option (80%max load,240V AC,25℃)

Safety Specifications

·UL/cUL ·GS ·BSMI ·CCC

·SAA ·T-License ·EK ·PSE

·CB ·FCC ·CE ·C-Tick

Place of Origin:

Guangdong in China
