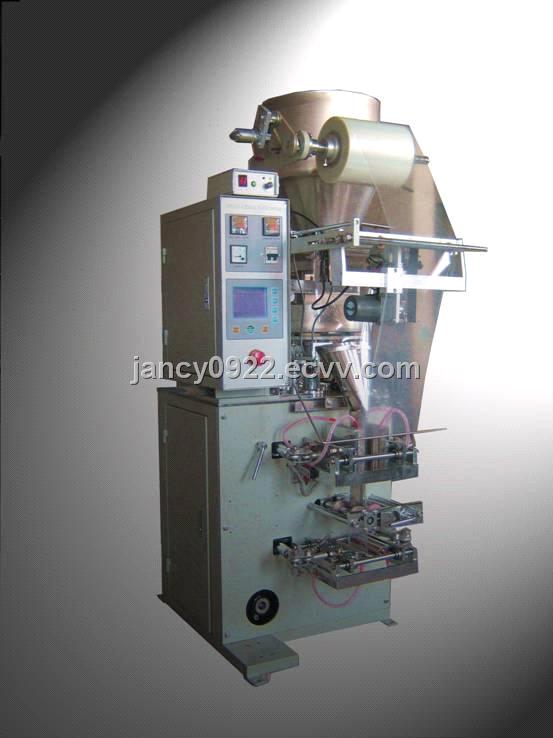

Automatic Liquid Packing Machine (ZS3-J320B-YD110)

Detailed Product Description

Advantages︰

Functions: It sets the Electrical and Mechanical in one, dual cpu computer control system, the English show ，that the adopt microcomputer control correction for electro-optical tracking systems, stepper motor equipped with high-precision, precision design of each bag of the same location. The control system achieve synchronous machine, fixed-length, location and speed, automatic fault diagnosis function. Can choose ribbon date printer or Seal playing device.
Performance: The mechanism automatic finish a series of action such as bags, filling, counting, sealing, slitting, the output of finished products. Stepless speed regulation, the process do not have downtime.

Scope of application ︰

Purposes: The machine auto dosing packing for paste, liquid and sauce such as tomato paste, hair cream, face cream, condiments, etc. to applicable to the local food, daily chemical and pharmaceutical industries.
Technical parameters:
Packing speed ：25-60bags/min
Bag size：L30-280mm ; W30-135mm（need replace bag format）
Packaging range：25-110ml (need replace measuring cup）
Power：1.2kw
Weight：250kg
Dimensions：650*850*2020mm
Packing form：three/four-side sealling
