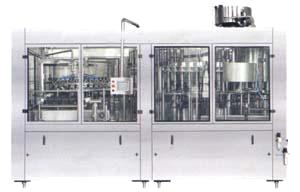

Carbonated Machine

Detailed introduction:
The equipment is used in production of carbonated beverage, non-soda drink of fruit juice, fruit
wine, minerals and purified water packed in polyester bottles, Washing, filling and capping are
integrated in one machine.
Washer, iodine, medicated oil. Main technology parameter:
Model CCF 16-12-6
Production Capacity:(600ml)(b/h) 3000
Filling Precision ≤ ＆#177;5mm（Liquid Level)
Polyester Bottle Standard(mm) (Bottle Diameter): 50mm;100mm;（Height):150-320mm
Suitable Cap shape （Plastic Screw Cap)
Water Pressure of Washing Bottle (MPa): 0.2-0.25
Water Consumption for Water Bottle (kg/h) :800
Spraying Position 5
Dripping Bottle Position 3
Gas Source Pressure (MPa): 0.4
Gas Consumption (m3/min): 0.3
Total Power (KW): 4.23
Total Weight (kg): 2500
Dimension (L*W*H)(mm): 2300*1550*2500

Place of Origin:	Liaoning in China
Model No:	CCF 16-12-6
Brand Name:	KORICAN MACHINERY
