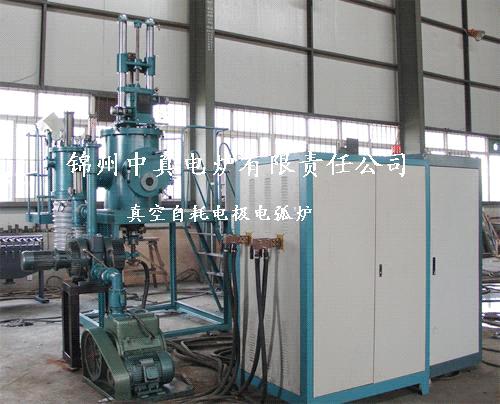

Vacuum Consumable Electrode Arc furnace

Vacuum consumable electrode arc furnace is used to melt the metal rods prepared in advance in vacuum or under inert gas atmosphere. The furnace is designed for remelting steel, especially high-grade alloy steel, tungsten, molybdenum, niobium and titanium. It has advantages of high temperature, rapid melting and effective degassing. The melted metal can not be contaminated by refractory material, which reduce the nonmetallic impurity in the charge.

Main technical parameter

	Unit	ZH-0.001	ZH-0.005	ZH-0.025	ZG-0.2
Capacity	Kg	1	5-15	25	200
Working pressure	V	20-40	20-40	20-40	20-40
Max. current	A	1000	3000	6000	12000
Final vacuum	Pa	1.33-1.3310^-2	1.33-1.3310^-2	1.33-1.3310^-2	1.33-1.3310^-2
Electrode lenth	mm	400	1200	1350	1745
Electrode diameter	mm	Φ25-Φ40	Φ10-Φ45	Φ30-Φ60	Φ56-Φ150
Ingot diameter	mm	Φ60	Φ50-Φ80	Φ100	Φ100-Φ200
Ingot length	mm	100	130-135	400	670
Cooling water consumption	M³/h	6	10.5	16	50
Size(Length,width,height)	m	0.8×0.35×1.8	3.81×3.0×5.21	4.43×3.33×4.93	7.4×3.4×6.72

Place of Origin:	Liaoning in China
FOB Price:	0-1 RMB any port
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|10\|Year
Package:	large equipment packing
Delivery Time:	6-12months
