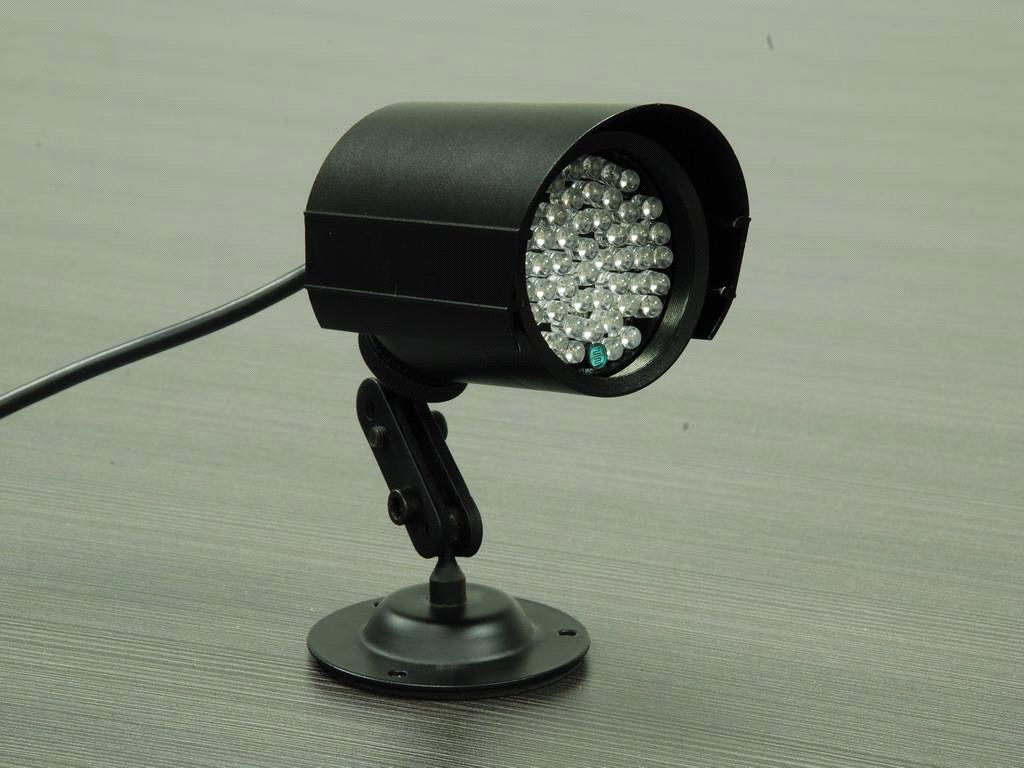

IR illuminator

Detailed Product Description

FEATURES
●IP66 aluminum professional housing
●High efficiency heat evaporating housing
●Build-in 48PCs high power IR LED
●Special design 850nm IR LED and circuit prolongs life span of IR LED
●R effect degree:75°～20°(Optional)
●IR effect distance:25M～55M(Outdoor)(At your option)
●Input Dual Dower DC12V or AC 24V (At your option)

3.6mm LENS	6mm LENS	8mm LENS	12mm LENS
90°(MAX)	55°(MAX)	40°(MAX)	30°(MAX)
25M(Out door)	30M(Out door)	35M(Out door)	45M(Out door)
35M(In door)	35M(In door)	40M(In door)	50M(In door)
■	□	□	□
Control	CDS/1.0Lux
Power Supply	DC12V
current consumption	500mA(Max)
Dimension	130×65×60mm
Weight	340g
Storage Temperature	-30～+60℃
Operating Temperature	-10～+45℃
Remark : The IR Illumiator are only operated with regulative adaptor AC to DC 12V,AC non-regulative adaptor may cause camera damaged.
