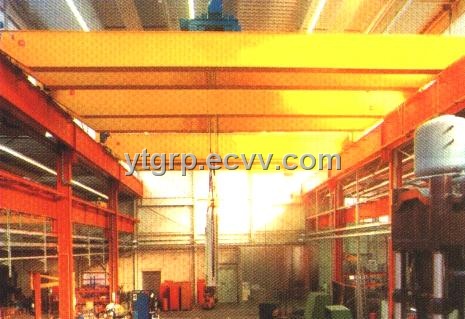

LH Double Beams E.O.T Crane

LH model double beams overhead crane use the special  electric hoist as lifting unit, with compact exterior dimension, low construction headroom, light self-weight, light wheel load, low cost  and so on.

        It could be used in mechanical processing workshop, metallurgical factory and subsidiary workshop, warehouse, material yard and power plant for transferring, assembly, inspection maintenance and loading procedures.

It can also replace common double  beam overhead crane, used in light textile industry and food industry manufacturing workshop.

        This kind of crane working duty  is light and middle grade. The standard working environment temperature is  from -25 to 40°C, forbidden to use in flammable, explosive and corrosive environment.

        The capacity is from 5 tons to 32/10 tons, span is 7. 5-31. 5m, and working grade is A5.

This product  could  be  operated by ground  or cabin control. Regarding the cabin control, there are open and close styles for driver, and the cabin  could be installed  left or right according to your demand. and the entrance  could be  opened  side  or top  to satisfy your different needs

Place of Origin:	Henan in China
Model No:	LH
Brand Name:	YT
Other Price Terms:	CFR,CIF,EXW;
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Package:	Electricals and parts packed by high quality plywood crate, beams packaged by plastic woven cloth.
Delivery Time:	Within 50days after receiving deposit
