Teking Electronics Co., Ltd.

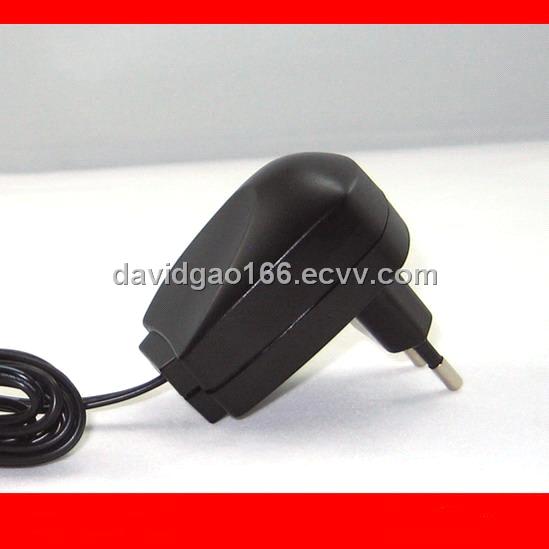

AC-DC Switching Power Adapter

AC-DC Switching Power Adapter

Detailed Product Description

Input Voltage/Frequency:100~240VAC 50/60HZ
Onput Voltage Range:3.3V~32V
MAX.Output Power:2.5W-12W
Ripple Wave:0.4%
Efficiency:≥85%
Insulation:3KW/5m
Output Protection:Over Voltage Protection,Over Current Protection
Short Circuit Protection,Over Hot Protection
Working Temperature Range:-10~+40℃
Storage Temperature Range:-40~+70℃
Overall Dimension:59×25×42mm
Electromagnetism Compatibility or EMC:EN55013,EN55022 CLASSB,EN6100
Security Approval:UL,CE,CCC,GS,SAA,PSE,EK,6P.
Accord:EN61558,EN60335,EN60065,EN60950,EN61010,GB4943,UL1310,UL60950

Place of Origin:	Zhejiang in China
Model No:	AS10/AS20 Series(EU) ( 2.5W-12W )
Brand Name:	Teking
Payment Terms:	L/C,T/T(Bank Transfer),Western Union,
Minimum Order:	Piece/Pieces 500
Supply Ability:	Piece/Pieces\|100000\|Year
Package:	white carton
Delivery Time:	15days after payment
