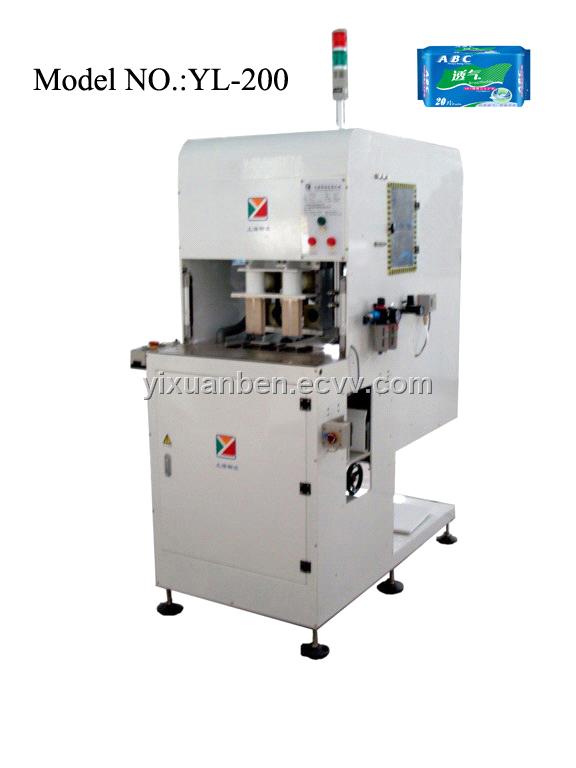

YL-200
Key Characters:
Widely used in sealing of the plastic packaging of Panty liner or sanitary napkin
When stacking machine is put into application, the efficiency of package sealing will be greatly improved.
Cut cost in manufacture and operation management, save more working spaces and have processes more integrated
Cut more than 70% labor cost for packaging
Compact, smaller footprint, easy operation and stable capability
Manual feeding, automatic sealing and packing output
Leftover material automatic recycled
Applicable for sealing of products of all sizes by changing moulds
Main components:
PLC( KEYENCE, Made in Japan)
Photoelectric sensor(KEYENCE,Made in Japan)
Safety photoelectric bar(KEYENCE,Made in Japan)
Step motor(STARTSHAPHON)
Pneumatic component (AIRTAC,MINDMAN,Made in Taiwan)
Main Technical Parameters:
Power supply: 3 phase 380V+N+PE
Installation capacity: 5.5KW
Pneumatic system: 4.5~6 kgf/cm2 (Provided by client)
Air consumption:0.28m3/min
Overall dimensions :1300×800×1800mm(L×W×H)
Weight:450KG
Packing range: L(60~100)×W(30~100)×H(60~200)mm
Packing speed:30~34bags/min
| Place of Origin: | Shanghai in China |
| Model No: | YL-200 |
