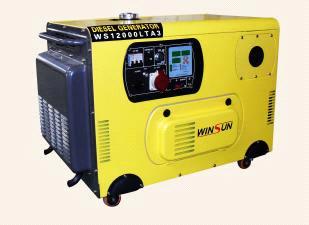

Diesel Generator (WS12000LTA3)

Detailed Product Description

Rated frequency (Hz) 50  60
Rated output power(kVA) 10  11
Max. power (kVA) 11  12
Rated voltage (V) 400/230 416/240
Rated current (A) 14. 5  15. 3
Phase No. Three
Power factor  0. 8(lag)
Insulation F
Pole No. 2
Exciting way Brush, exciting-self voltage-constant (with AVR)
Panel type Intelligent
Output socket Three-phase  socket,                                                                                     single-phase socket
DC12V output 12V, 8. 3A
Dimensions(L×W×H mm) 870×630×700
Net weight (Kg) 198
Noise (7m)dB(A) 82
Structure type half-closed
Engine model R2V840
Type V-twin, two-cylinder, four-stroke, CDI
Cylinder No. –bore ×stroke (mm) 2-86×72
Total displacement (ml) 836
Rated power(kW)/rated speed(r/min) 11/3000   12/3600
Compressed ratio 20: 01
Cooling way Air-cooled
Lubricating way Pressure & splashing
Starting way Electric with Battery
Fuel used 0#(summer)                                                                                                          -10#(winter)                                                                                                                -35#(cold winter) light diesel
Oil used SAE10W30  (CD grade above)
Lubricating oil capacity (L) 1. 7
Starting motor capacity (V-kW) 12V  1. 4kW
Dynamo capacity (V-A) 12V  10A
Battery capacity (V-Ah) 12V  35AH
Fuel consumption (g/kW. h) ≤280          ≤320
Fuel tank capacity of the generator (L) 25
Continuous operation time of the generator(H) 8                  7. 5
Application of automatic shifting switch (ATS) Optional
Place of Origin:Heilongjiang in China
Model No:WS12000LTA3
