Horizontal Directional Drilling Rig

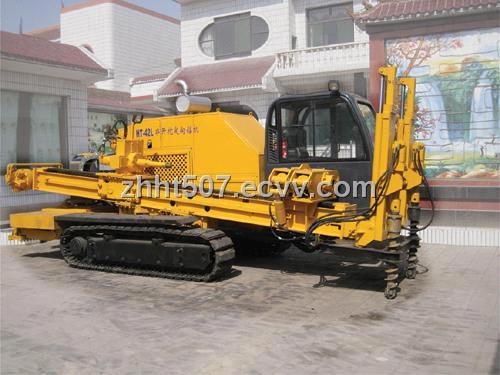

HT-42LB directional drilling rig adopts steel track with rubber block .The diesel engine is mounted on the main frame, along with the extension guide, the mud mixing pump, and a rotary head. The drilling machine features reasonable structure, convenient operation, and high stability. It is convenient to move in urban areas and also be widely used in the city or outside trench-less pipe-laying.

Characters:

1.Pushing structure is chained wheel mode to reduce bearing capacity of roller chain, increase drill rig’s pullback force storage, enhance safety factor, which can save 20kw engine power.
2.Two-speed gear is used in rotary and thrust system which is in favor of hole clearance and pullback process, and to improve working efficiency and success rates.
3.Heavy-duty Hydraulic rotary power head adopts rock drill head. It can bear a larger impact load and it is more suitable for dry or wet drilling and improves lifetime in dry or wet drilling.
4.The carriage with rollers reduces the friction and improves the lifetime of extension guide.
5.Hydraulic auger anchor device saves labor force and increases efficiency.
6.Exclusive slide drill frame provides a range of setup angles for varying jobsites requirement.
7.Two hydraulic clamps make assemble and disassemble drill rods more conveniently and effectively.
8.The diesel engine and main hydraulic parts adopt imported products or famous domestic companies.
9.It equipped with 100hours high energy cell in order to complete long distance drilling.

Specifications:
