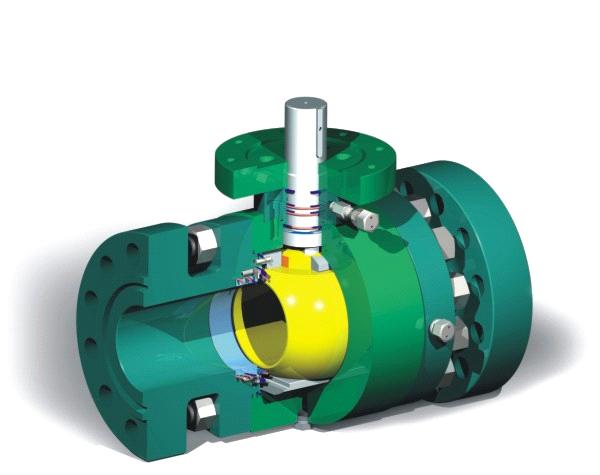

Ball Valve
No.
Part
A105/ENP
A105/316
F316/316
LF2/316 NACE
1
Body
ASTM A105
ASTM A182-F316
ASTM A350-LF2
2
Adapter
3
Ball
ASTM A105/ENP
4
Seat Assembly
Assembled By 5&6
5
Seat Insert
PTFE / Nylon
6
Seat Ring
7
Stem
8
Alignment Pin
Stainless Steel
9
Shim
10
Trunnion Support
ASTM A350-LF2/ENP
11
Gland Gasket *
304SS + Graphite
316SS + Graphite
12
Body Gasket *
13
Spacer
PTFE
14
Seat Firesafe Packing*
Flexible Graphite
15
Stem Firesafe Packing *
Gland Flange
Top Flange
Thrust Washer
Bearing
316 + PTFE + MoS2
Seat Follower
Vent Valve
Drain
Seat Spring
Inconel X-750
Antistatic Spring
Grounding Plunger
O-Ring *
NBR / Viton
Body Stud
ASTM A193-B7
ASTM A193-B8
ASTM A320-L7M
Body Nut
ASTM A194-2H
ASTM A194-8
ASTM A194-7M
Screw
Carbon Steel
Gland Pin
Key
Seat Injection
37
Stem Injection
