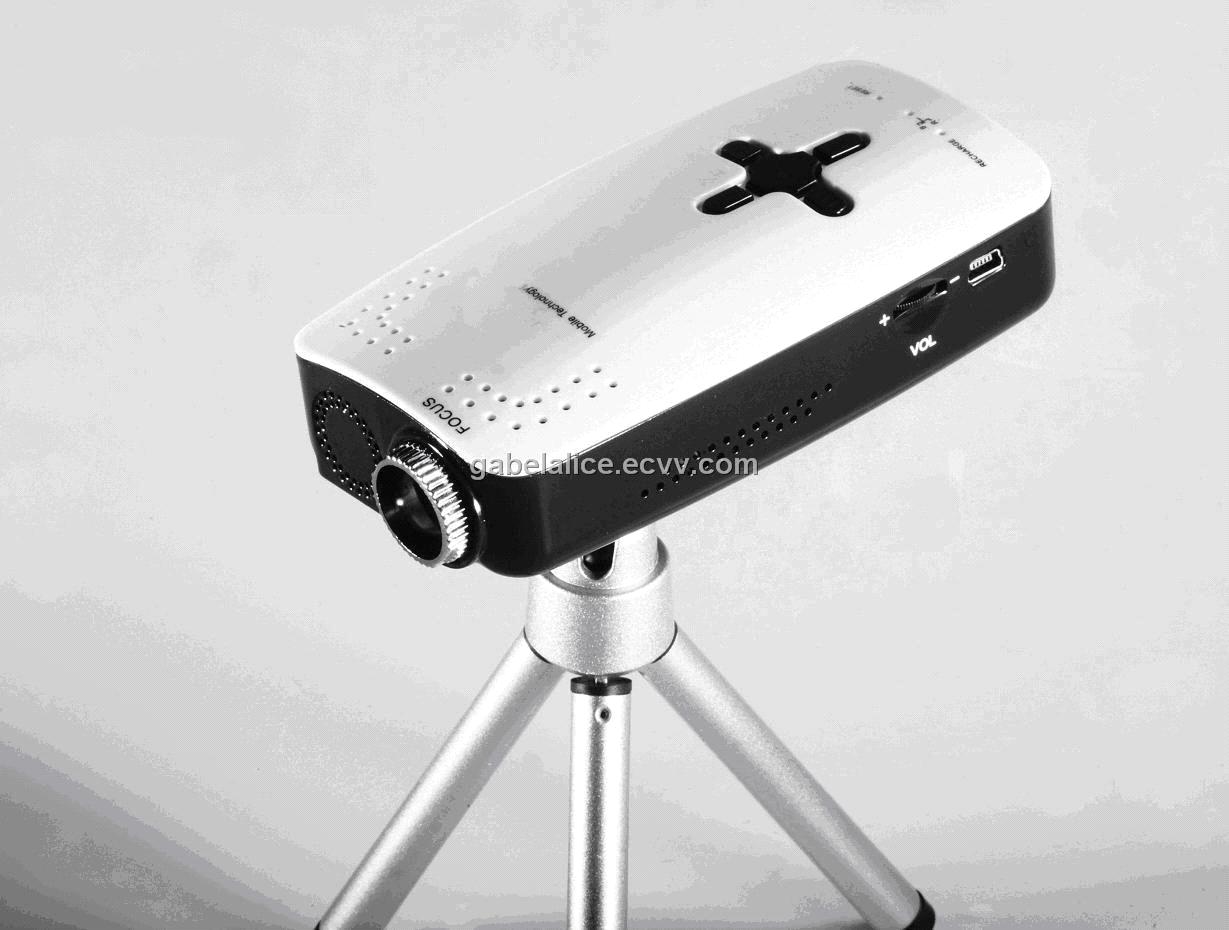

Mini Pocket media projector ,Model SF-MP601
Overview
SF-MP601 is a pocket projector with MP4 play function and 2G EMS
Internal memory that can connect to mobile phone/iphone, MP4/
ipod, PSP/wii/PS/X box, PDA, DVD, PC/notebook or other digital products which
Have video and audio output for game consoles and mini
Business presentation. Also including USB connector,
Micro T-Flash card housing and earphone connector.
Basic Concept
1.Special Features
Excellent brightness
Long life time
Re-charged lithium battery inside
Speaker inside
Small size and portable
Low power
MP4 play function
TF card
USB connector
Earphone
Low cost
2.Key Components
Comprises of following key components:
Projection lens
imager and driver system
Optical elements
LED light source
Collimator lens
3.Product Specification-Parameters
|
Display Technology |
Lcos Technology |
|
Light source |
LED |
|
Resolution |
640*360 |
|
Aspect Ratio |
16:9 |
|
Effective Focal Length |
14.3mm |
|
Focusing |
Manual focus in rotation adjust |
|
Projection Distance |
0.2m to infinite |
|
Image Size (normal operation) |
5.2 @0.2m,81 @3.0m |
|
Contrast Ratio |
50:1 |
|
Distortion |
1% |
|
Brightness |
10 lumens |
|
Uniformity |
85% |
|
Color gamma(Compare to NTSC) |
>50% |
|
LED Power Comsumption |
2.5W @ 700mA driving current |
|
LED Life |
30,000 hours |
4. Functions Description
Connect to Digital Products
As a projector, you can connect to mobile phone/iphone, MP4/
ipod, PSP/wii/PS/X box, PDA, DVD, PC/notebook or other digital products which have video and audio output.A turner is for volume control.
MP4 Player Functions
Music mode
steps for volume control.
Video mode
The RM/RMVB video can support 720x576 pixels.AVI video can support 800x480 pixels.
Photo mode
Four functions: All Photos, Manual play, Slide show, Thumbnail
E-Book mode
To get good result, please use bigger font size.
Navigation
Internal Media, Recorded List, All Audio Tracks, All Video Tracks, All Image Files.
Settings
Repeat: Normal->Repeat One ->Repeat All -> Random
Language: Sixteen languages selected Default: Load the
Factory default settings. Format: You can format your Disk
MP4 Support Formats
|
Audio Format |
MP3 |
|
MPEG1/2/2.5 |
|
WMA |
|
WAV |
|
APE |
|
FLAC |
|
ACC/ACC+ |
|
Video Format |
AVI |
|
MPEG1/2/4,3G,WMV9/VC1,ASF,RM/RMVB.FLV |
5. Outlook, Dimension and Weight
Layout and Dimension as picture
6. Interface
Signal Input
3.5mm A/V Jack, Support CVBS, NSTC/PAL, Audio.
Power Switch
Three locations:
i)Power adapter, 5V DC. Ii) Power off
iii) Battery
USB Connector
7. Transport and Storage Environment
Temperature : -10C ~60C
Humidity : 20 ~80%
Avoid corrosive and combustible environment, moisturepro
of package.
8. Packaging Item List
Pocket Media Projector
Power Adaptor
A/V Cable
USB Cable
Tripod
| Place of Origin: | Shenzhen in China |
| Model No: | SF-MP601 |
| Brand Name: | SF |
| Payment Terms: | T/T(Bank Transfer),Western Union,PayPal, |
| Minimum Order: | Piece/Pieces 1 |
| Supply Ability: | Piece/Pieces|2000|Week |
| Delivery Time: | 5-7days |
