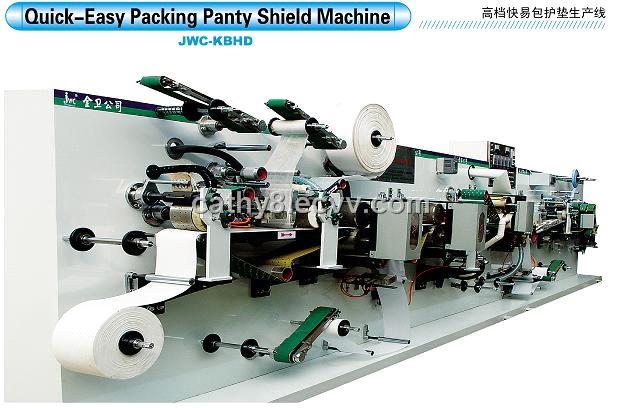

Panty Liner Making Machine

Detailed Product Description

1,Main functions features:
1. It can produce combined type, three-piece type and "T” type pads.
2. The small package adopts hot-press & thermal-sealing shape cutting to ensure that the products are graceful and smooth.
3. It has release paper and non-dust paper slitting device.
4. Heating rotator is pressed through cylinder and phase adjustment without shut down.
5. It has device for pressing the pads and dots on the sealing side.
6. Vacuum absorption and transmission are introduced to maintain materials stabilization.

2,Main technical parameters:
1. Type: JWC-KBHD
2.Overall dimensions:(12.5*1.6*1.95) M (L*W*H)
3.Working space:(14*3*3)M (L*W*H)
4.Total weight:8.5T
5.Power supply:380V 50HZ
6.Installation capacity: 23KW.
7.Designed output: 400pieces/min.
