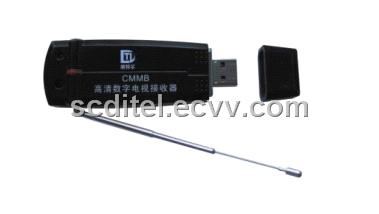

USB2.0 High-definition Digital TV Receiver
Product Introduction
Support China Mobile Multimedia Broadcasting (CMMB) standard of USB-based mobile multimedia broadcasting receiving terminal equipment MV100.Its mainly function is for the existing mobile terminal ,such as laptop,PDA and CMMB receiving terminal without USB interface，enabling them to upgrade to receive CMMB signals Of mobile multimedia terminal
Our MV100 product is easy to operate and carry with stable performance and safe and environmental Characters, widely used in the laptop,PDA mobile terminal equipment,which has become the new mobile multimedia broadcasting receiving equipment
Product Characters,
1. Wireless Receiving
2. Receive CMMB mobile multimedia digital TV programs
3. Low power Consumption , high-speed USB 2.0 bus
4. Convenient and friendly operation interface of software
5. Support 8MHz bandwidth
6. Support mobile receiving
7. Easy to carry with
8. Low-cost CMMB mobile multimedia terminal
Technical data
1. Frequency range : 470MHz～860MHz
2. Bandwidth 8MHz
3. Input level :-83 dBm～－20dBm (64QAM) -90 dBm～－18 dBm(16QAM)
4. Sensitivity range 0dBm～-100dBm
5. RF input impedance :50Ω
6. Modulation :support BPSK，QPSK，16QAM
7. Mobility:min.300KM/H of U band
8. Voltage: 5V,USB interface provides 5V power source , No external power supply
9. Power: 400mw(max)
10. Environmental temperature0°C～40°C
11. Storage temperature : -10°C～60°C
12. Environmental humidity ：＜90%
| Place of Origin: | Sichuan in China |
| Brand Name: | Ditel |
| Payment Terms: | L/C,T/T(Bank Transfer),Western Union, |
| Minimum Order: | Set/Sets 100 |
| Supply Ability: | Set/Sets|20000|Month |
| Delivery Time: | 15-20 days |
