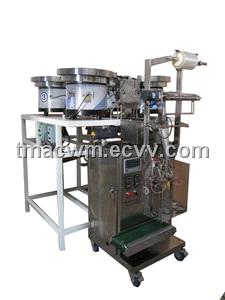

Nails Packing Machine

Automatic counting and packaging machine

Model

GH240BS-4

Article

spherule, dicelike and irregular object

bag size

L50-120mm W30-90mm

Capacity

60-200 pcs/min/feeder

Control method

PLC+Optical+English interface

Air consumption

0.24m/min, 0.26Mpa

Power

1500w

Power supply

AC 380V 50Hz / AC 220V 50Hz

Weight

N.W 300 kg; G.W320 kg

Size (mm)

1200*800*1800mm

Function

This machine can automatically measure, count number, make bags, fill, seal, and print codes. This machine adopts advanced PLC+photocell sensors, to ensure the number in each bag is very precisely. This machine has two parts and two basic functions. One is the filling parts with 1-20 vibrative hoppers. And you can use one,two,three...Separately;Another is the making bags and packing part. This machine can be used to pack foods,electric parts and samll hardware, such as candy, peanuts, pills and irregular objects, such as nails, bolts,nuts and small hardware etc.
