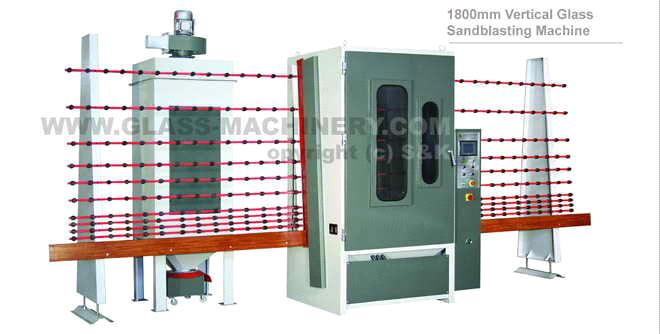

Automatic Vertical Glass Sandblasting Machine

Detailed Product Description

S&K series of glass sand blasting machine automatic system is made of touch screen and PLC. It can realize manual and automatic sand blasting function. It is easy for operation. Machine can be design according to customer requirement.

Technical specifications:

1. Total power: 4.1KW
2. Max. processing size:
    1500 X 2000mm (SKS-1500)
    1800 X 2000mm (SKS-1800)
    2500 X 3000mm (SKS-2500)
3. Min. processing size: 200x500mm
4. Glass transfer speed: 5 m/min
5. Nozzle moving speed: 5-25 m/min
6. Sand blasting speed: 20 m²/h
7. Suitable working pressure: 0.6MPa~0.8MPa continues
8. Suitable air pressure power: 2.4 m³/min, 15kw
9. Occupation area:
    6050 x 2000 x 2500mm (L X W X H) --- SKS-1500
    6050 x 2000 x 2800mm (L X W X H) --- SKS-1800
    7200 x 2000 x 3500mm (L X W X H) --- SKS-2500

Place of Origin:	Guangdong in China
Model No:	SKS-1800
Payment Terms:	T/T(Bank Transfer),
Minimum Order:	Piece/Pieces 1
Supply Ability:	Piece/Pieces\|5\|Week
Package:	Exports packing
