Bailong Machinery Manufacture Co., Ltd.

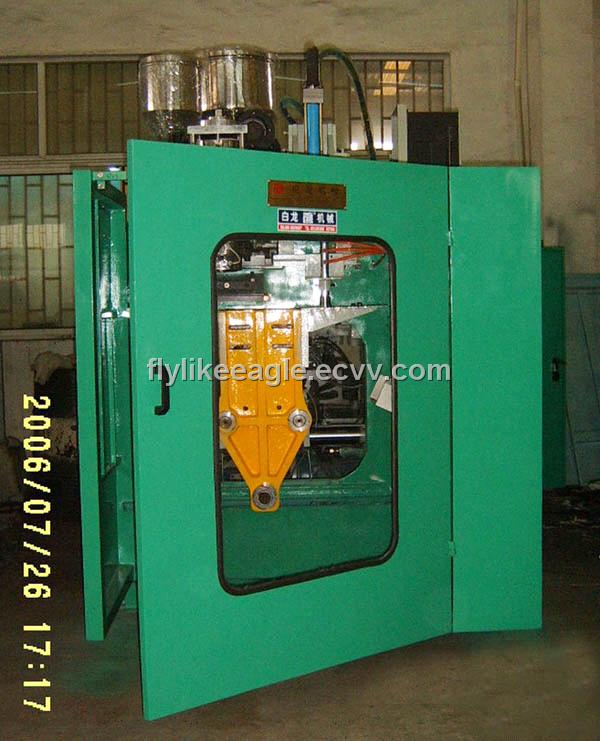

Blow Molding Machine (BLB45D)

Detailed Product Description

BLB45D Blow molding machine
Max product voleme (L):              1.5
Dry cycle  (pc/h)                   300/480
Screw diamerer (mm)                45
Screw L/D ratio (L/D)                24
Screw drive power (kw)              7.5
Screw heating capacity(kw)            7
NO. of screw heating zone (zone)       2
Output of HDPE:(kg/h)               18
Clamping force (KN)                30
Open mold platen distance(mm)       120-250
Max size of mold (w*h)( mm)         260*300
Max die diameter (mm)               60
Die heat capacity(kw)                4
Blowing pressure(Mpa)               0.6
Air volume(M/MIN)                0.2-0.4
Cooling water pressure(Mpa)          3
Water consumption(L/min)           1.5/3
Size of machine (L*W*H)          2.2*1.7*2.2
Weight of machine (Ton)             1.8

Place of Origin:Jiangsu in China
Model No:BLB45D
jiangsu molding machine:jiangsu plastic machine factory
Other Price Terms:30%T/T,70%balance against the copy of the b/l
Payment Terms:L/C,T/T(Bank Transfer),
Delivery Time:20-25days after balance 30%T/T
