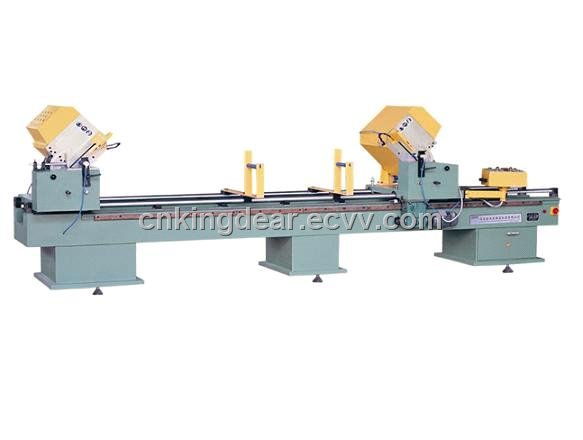

Double Head Mitre Saw

Equipment feature
Used for aluminum profile cutting.
Carbide saw blade give accurate processing and high endurance.
The two heads can work independently and simultaneously.
Cutting off the required length and two end angles is available by one time processing

Technical parameter
1) Power supply: three phase, four line 380V, 50Hz
2) Saw motor: 1.5Kw x 2, 2,800r/min
3) Pulling motor: 0.55Kw, 1,400r/min
4) Working pressure: 0.4 - 0.6MPa
5) Air consumption: 200L/min
6) Cutting length: max. 3,700mm; min. 400mm
7) Cutting width: max. 120mm
8) Cutting height: max. 200mm
9) Cutting angle: -45° - 0° - 45°
10) Cutter feeding speed: 0 - 3m/min
11) Saw diameter specification: 450mm x 4mm x 30mm-120
12) Overall dimensions: 4,500mm x 1,100mm x 1,400mm

Processing  accuracy

Repeat locating length ≤0.2mm
Cutting angle allowance ±5'
Cutting profile surface planeness ≤0.10mm
Cutting profile surface roughness Ra12.5μm
