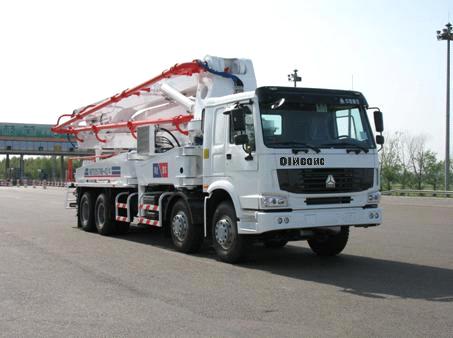

48 m Truck-mounted concrete pump

Detailed Product Description

QINGONG Truck-mounted Concrete Pump branch selected HOWO chassis and Germany ROTHE ERDE and Italy Larry Olisa slewing bearing for boom system. QINGONG 37m , 42m , 45m and 48m truck-mounted concrete pump are very popular in global market.

48 m Truck-mounted concrete pump

Main Technical Parameters In Service

Output in theory	m3/h	125
Pumping capacity index	Mpa.m3/h	586
Max. pumping pressure	Mpa	8.5
Hopper capacity	L	700
Feeding height	mm	1400
Model of distributing valve		S-pipe valve
Max. distributing radius	m	43.7
Max. distributing height	m	47.7
Max. distributing depth	m	34.3
Height of boom when stretched	mm	9065
Distance between front landing legs	mm	9780
Distance between rear landing legs	mm	9860
Distance between front & rear landing legs	mm	9470
Diameter of delivery pipe	mm	125
Length of tail pipe	m	3
Rotary angle of boom		365°
Number of boom sections		5
Rotary angle of each boom section	°	91/180/180/180/270
Close-control distance	m	33
Remote-control distance	m	200

Main Technical Parameters in Driving Condition

Max. traveling speed	km/h	85
Min. turning radius	mm	12000
Brake distance	m	10
Approach angle	°	16
Departure angle	°	11
Chassis model		HOWO ZZ5437S4667W (371 hp engine)
Wheel base between the first & the second axle	mm	1800
Wheel base between the second & the third axle	mm	4600
Wheel base between the third & the fourth axle	mm	1350
Front tread	mm	2022
Rear tread	mm	1830
Max. engine power	kw	275(2200r/min)
Max. engine torque	n.m	1500 /(1100~1600 r/min)
Max. grade ability	%	37
Fuel consumption	L/100km	40
Overall dimension(L×W×H)	mm	13300×2500×4000
Total weight	kg	40000

Place of Origin:	Shandong in China
Model No:	HDT5401THB-48/5
Brand Name:	HOWO
FOB Price:	419000-430000 USD CHINA PORT
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets\|20\|Month
Package:	NUDE PACKING
Delivery Time:	45DAYS
