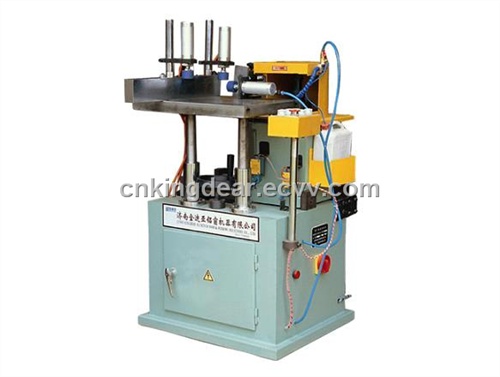

End Milling Machine

Equipment feature
■Used for processing aluminum profile end step face and end slot etc.
■Super precision main shaft insured accurate and steady processing.
■Adjustable processing angle within30°~90°
■Convenient tool setting due to adjustable worktable.
■Tool main shaft is connected by shaft coupling ,thus the motor main shaft rotating accuracy can not affect the tool's working accuracy.
■Tool feeding adopted linear bearing motion pair,which insured steady process.

Technical parameter
1) Power supply: 380V, 50Hz
2) Motor power: 1.5kW
3) r.p.m.: 2,850r/min.
4) Cutter axis diameter: Φ32mm
5) Max. milling cutter diameter: Φ200mm
6) Max. milling range: 200 x 70 x 45mm
7) Processing roughness: Ra12.5μm

Processing  accuracy

■Processing roughness Ra12.5um
