Split Solar Water Heater

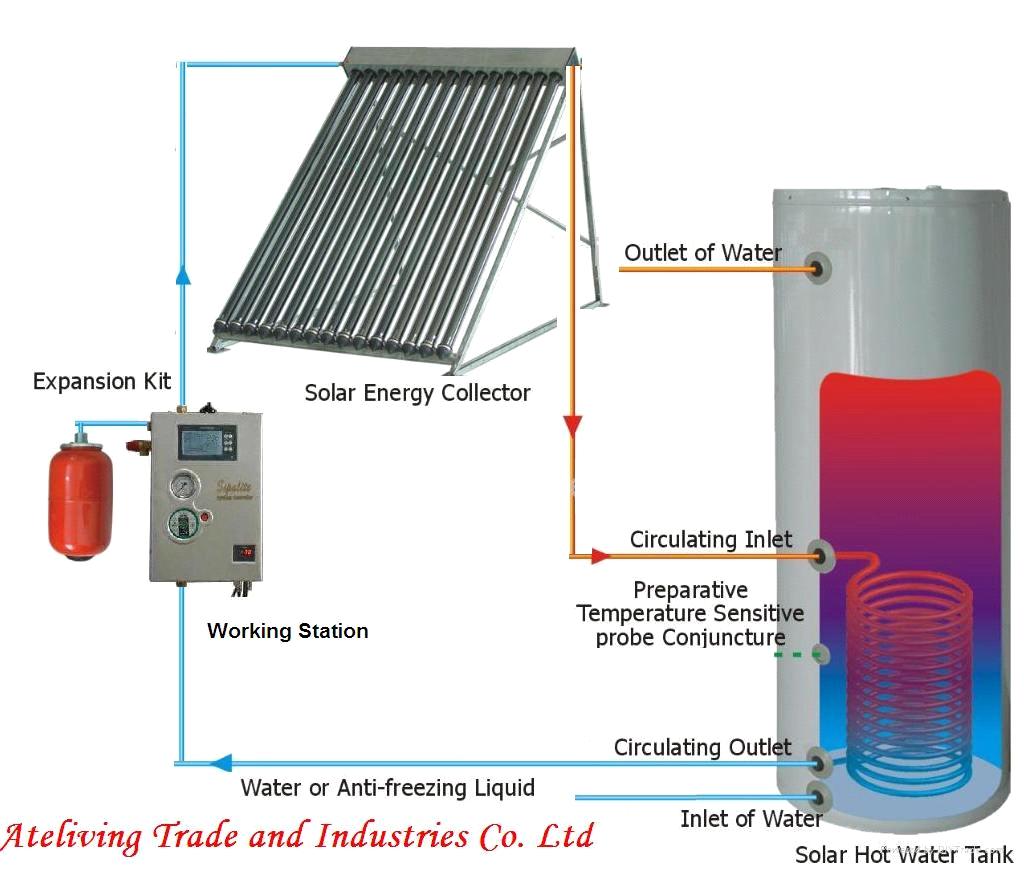

The vacuum tubes absorb the solar irradiation and then heat up the copper heat pipe inside the vacuum tube. The copper heat pipe conducts the heat to the top end inside the module. And then the heat will be transferred by the medium to the heat exchanger in the water tank. The medium was circulated by a pump inside the working station.
1). Size?of tubes:???Φ47*1500mm Φ47*1800mm??Φ58*1800mm???
2).? Type of tube:?????Heat pipe?vacuum tubes
3). Capacity: 100L 150L 200L 250L 300L (or any volume as you requested)
4). Material of water tank:?
???????? a.?? Outershell-??SGCC galvanized plate  stainless steel SUS304
??????? ? b.?? Insulation materials -???50mm Fluorine-free foam?
??????? ? c.?? Inner tank-??0.8mm-2.0 mm Sus304-2B stainless steel Food grade
5). Bracket:?? multi-purpose, anti-corrosion galvanized sheet/aluminum alloy
6). Accessories:????stainless screw, food-grade silicone rubber seals.? ?
Others:
1. ISO9001:2000 appoved
2. CE appoved
3. CCC(China compulsory Certification) appoved
4. OEM offered

Place of Origin:	Zhejiang in China
Brand Name:	Jinbang
FOB Price:	100-900 USD Shanghai
Payment Terms:	L/C,T/T(Bank Transfer),
Minimum Order:	Set/Sets 1
Supply Ability:	Set/Sets|2000|Month
Package:	carton wooden package
Delivery Time:	10days after order comfirmed
