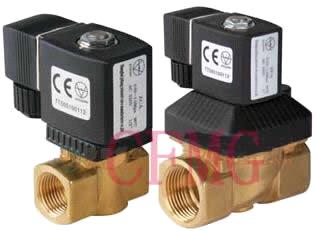

CE Approved ZCA Solenoid Valves (Ex-Proof)

CE Approved ZCA Solenoid Valves (Ex-Proof) ZCA

CE Approved ZCA Solenoid Valves (Ex-Proof)

  Prev Product Contact Now Next Product

Detailed Product Description

Operating type
  		Normally Closed
  		2/2 way Pilot-operating

Normally Opened

ParameterModel
  		ZCA-1 ZCA-2

Medium
  		Model 1
  		Water, diesel oil, gasoline, coal oil, air, natural gas, glycol, etc.

Model 2
  		Hot water, hot oil, hot air, etc.

Environment temperature
  		-20~60

Medium temperature
  		Model 1: d90 Model 2: d150

Inside nominal diameter (mm)
  		6~8
  		10
  		15
  		20
  		25
  		32
  		40
  		50

Connection thread size (G)
  		1/4
  		3/8
  		1/2
  		3/4
  		1
  		1-1/4
  		1-1/2
  		2

Working pressure (bar)
  		0. 3~10
  		0. 3~16
  		0. 7~16

Voltage
  		AC: 220V 50Hz/60Hz, DC: 24V or other

Power
  		AC: 10W, DC: 15W
  		AC: 15W, DC: 18W

Operating range utility voltage
  		±10%

Material
  		Valve body
  		Forged Brass

Hermetical Material
  		Model 1: NBR, Model 2: FKM, other: silicon rubber(food level)

Way of connection
  		Female thread

Special type
  		BZCA Explosion proof solenoid valve

Level of explosion proof: ExmI/IIT4, dIIBT4, dIICT5

Note
  		This valve can open or close completely under a differential pressure of 0. 7 bar.

Model No:ZCA
Brand Name:VKS
