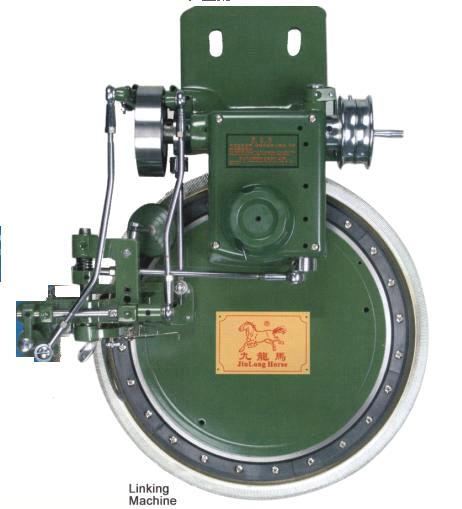

Linking machines main job is to join individual knitting fabrics (such as
Front & Back part, Collar, Sleeves etc. ) to make design shape.
Lucky Star Brand Dial Linking machine is manufactured by imported high frequency carbon sheet. It is light, handy and also noiseless for its lubrication system.
Lisky Dial Linking Machine is beautiful and durable with its enameled colors.
Motor and Table stand supplied in separate as per requirement of buyer on order
and price is not included with the machine head usually.
Specifications:
Gauge : 3G, 5G, 7G, 8G, 9G, 10G, 12G, 14G and 16G
Dial section diameter : 356mm(14")
Linking efficient : 400 needles/min
Trace type : ingle line linking
Linking layers : 1~4 layers
Input power : 90W(1/8HP)
Power source (single phase) : 50Hz 220V
Weight : 30kg
Number of needles of the linking machine : 3, 5, 6, 8, 10, 12, 1, 4, 1, 6, 18, 20, 22
Number of needles of the flat knitting machine : 1, 5, 3, 5, 7, 9, 10, 12, 14, 16, 18
Needle model : 7, 6, 5, 4, 3, 2
Stitch counts : 20/2~24/2
| Place of Origin: | Jiangsu in China |
| Brand Name: | Jiulong Horse |
| FOB Price: | 110-130 USD CHITTAGONG |
| Payment Terms: | L/C,T/T(Bank Transfer), |
| Minimum Order: | Set/Sets 10 |
| Supply Ability: | Set/Sets|2000|Month |
| Package: | STANDARD EXPORT CARTON PACKING |
| Delivery Time: | 15 days after receipt of your l/c or deposit |
