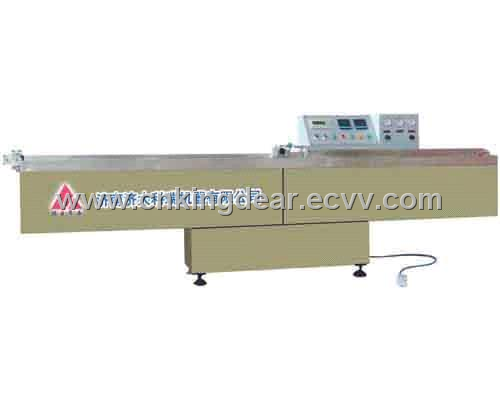

JT03 Butyl Coating Machine

Detailed Product Description

Features and specifications

1, adopts the imported Hydraulic and Pneumatic supercharging system

2,the entire machine system is more reasonable

3,possess of unique butyl quantity alarm system.

4,adopts the 72 hours time delayed heating system and function

5,Much more humanism design, the entire machine operation table can be realized up and down automatically

6,has spatially counts the function..

Main technical parameters

1, power supply 220V

2,total power 2.0Kw

3,temperature 100-140 ℃

4,adjustable range 6-20mm

5,air pressure 0.5-0.8Mpa

6, diameter of glue jar 5kg

7,speed of the conveyor 15m/min

8, dimention: 3430*700*1250mm

9,air consumption 60L/min

10, weight 800kg
