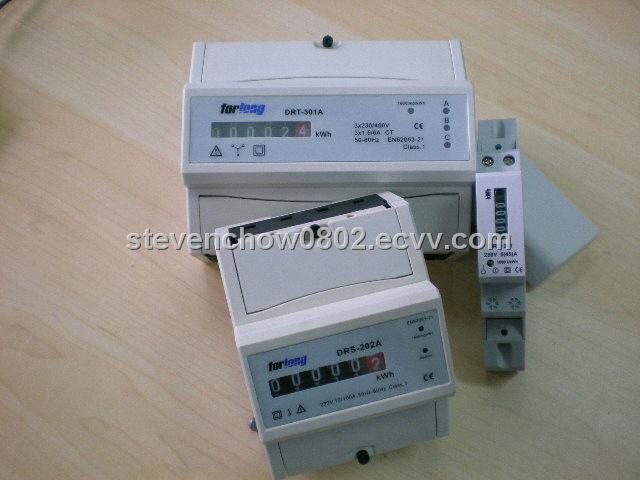

Energy Meter

Detailed Product Description

Product Type: DRS-201

Product Specs: 5(25)A 5(32)A 5(45)A

Technical Index: Electric characteristic

Voltage: 230V +/-30%

Current: 5(32)A

Accurancy class: 1.0 2.0

Standard: IEC1036

Frequency: 50/60Hz

Impulse contant: 1000imp/kWh

Display mode: LCD 5+2 = 99999.99kWh

Counter 5+1 = 99999.9kWh

Power consumption: VA ≤0.4W

Starting current: 0.004Ib

Temperature range: -20?5

Average value of year: 75%,short time value:95%

Impulse connection: Voltage 12-27V, current?7mA, max length of lead:20m Impulse width=90s, connect to terminal 5&6

Limits of values: max 60VDC, max 50mA

Product Description:

Static Single-Phase Electric Energy Meter uses advanced special recording integrated circuit with high precision DRS-201

Mainly used in AC single-phase watt-hour with its recording frequency of 50Hz, it is highly accurate, reliable, durable, low power consumptive, without reversion, creep-proof, anti-tampering, bilateral recording with strong overloading capability. It conforms to the related requirements of GB/T17215-1998. /IEC1036
