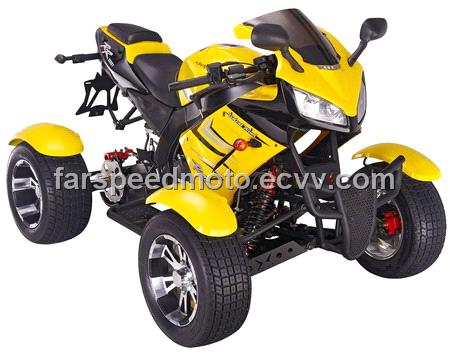

350cc Sports ATV (FPA350E-1)

Detailed Product Description

Engine Type:	single cylinder, Four-stroke ,air-cooled
Displacement (ml):	348
Bore X Stroke (mm):	83×64.5
Compression Ratio:	9.0:1
Max. Power (kw/r/min):	17.4/7500
Max. Torque (N.m/r/min):	23.5/6000
Max. Speed (Km/h):	88
Lubrication:	Pressed/splash
Clutch Type:	wet multiplate manual clutch
Ignition:	P.E.I
Starting System:	Electric
Transmission System:	Chain drive
Front Suspension:	Independent double wish-bone with dual surge tank
Rear Suspension:	Swing arm with single surge tank
Front Brake:	disck brake (four-wheels linkage brake)/hand
Rear Brake:	disck brake (four-wheels linkage brake)
Stationary Brake:	Mechanical lock
Front Tire:	AT 20×8-12
Rear Tire:	AT 20×10-12
Battery:	12V 14Ah
L X W X H (mm):	1920×1290×1125
Seat Height (mm):	850
Wheelbase (mm):	1280
Turning Radius (mm):	1600
Min. Ground Clearance (mm):	240
Max. Permissible Weight (kg):	150
Rider Capacity:	2
Dry. Weight (kg):	252
Engine Oil (L):	2.5
Fuel Tank Capacity (L):	16L
Gross weight	305KG
Container loading	20'ft/12pcs 40'HQ/36pcs
