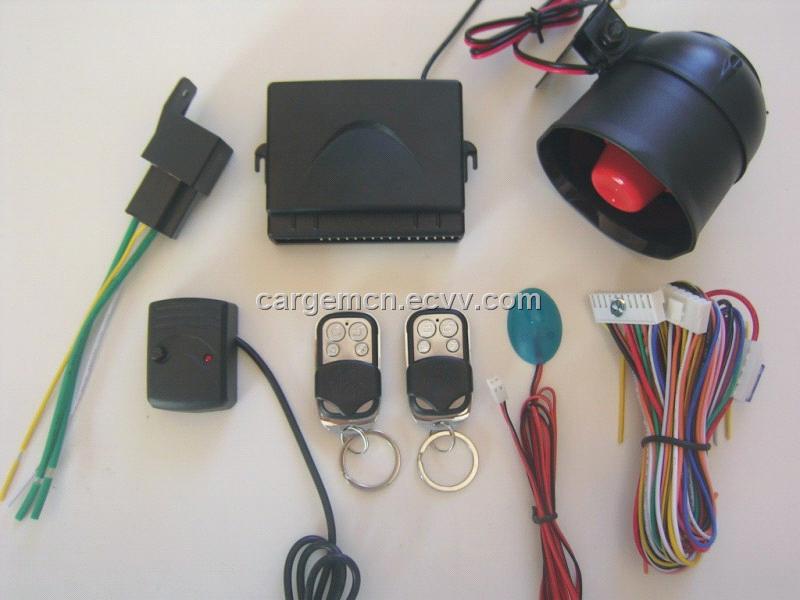

Uniform car alarm systems CH-838

Model No: Uniform car alarm systems CH-838



Function features:

1.Warning identification, Anti-hijacking
2.Central door locking system automation
3.Door unclosed well warning function
4.Car finding/help calling, Re-arm, LED indicator
5.Engine cut off, Emergency disarm
6.Intruding warning, Power off memory
7.Remote trunk release(negative signal)
8.Remote transmitter and receiver check code( learn code)
9.Electrical/Pneumatic central locking optional
10.Side door trigger(negative signal)
11.Silent Arm, Arming reminding

Technique Parameters:

Main frame:

1.     Output current:  Direction light 5A*2, siren 10A, central lock 10A

2.     Coding:          Learning code

3.     Voltage:         DC12±2V

4.     Static current:    ≤15A(except indicator, sensor)

5.     Indicator current:  20mA intermittently

6.     Shock sensor current: ＜1mA

Remote controller:
1.  Working voltage:           6-12V
2.  Working current:            10±2mA
3.  Frequency:                    315MHz- 433.92MHz
4.  Static current:                0mA
