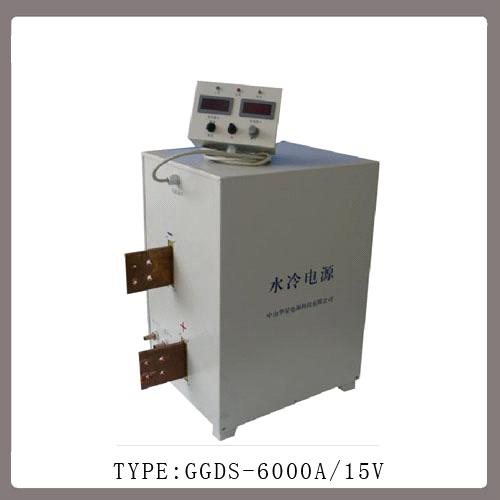

Electrolytic Rectifier

Specs:
1) Output Voltage(DC): 6V/12V/15V/18V/24V;
2) Rated Output Current(DC): 20000A/15000A/12000A/10000A/8000A/6000A/5000A/4000A/3000A/2000A/1000A/500A/300A.
3) Can be customized as your requirement.

Product characteristic:
1. Advanced technology: IGBT modules are adopted as main power devices and ultracrystallite soft magnetism materials are adopted as magnet core of main transformer.
2. High efficiency: It may save 15%-30% energy compared with ordinary silicon controlled rectifier;
3. High accuracy, high stability, and low ripple ratio. Main controlling part adopts advanced technology to let fluctuation of power net voltage and loads changes make no interference to output;
4. The output voltage and current are adjustable, and it can function under steady voltage and steady current states in different situation.
5. Special structure for antisepsis to increase the service life under harsh environment.
6. Reliable protective function against lack of voltage, lack of phase, over voltage, over current, over heat and etc.

Technical target:
1. Entering voltage: Three phase 380V +/-15%, 50HZ;
2. Output characteristic: Constant voltage and constant current are convertible;
3. Accuracy of controlling: ≤1%;
4. Whole machinery efficiency: ≤91%;
5. Cooling method: Water cooling and strong wind cooling;
6. Ripple Ratio: ≤1%.
