light curtain door detector

Detailed Product Description

Items	Technical Parameters	Items	Technical Parameters
Beams’ Number	128/154 unfocused beams (infrared)	Current Consumption	＜100mA
Sensors’ Number	32pairs (refer to pictures)	Power Adapter	MODEL258 or 368
Sensors’ Interval	52.5mm/58.5mm (refer to pictures)	Protection Grade	IP65 standard
Beams’ Center Points Interval	10.5mm/11.5mm (refer to pictures)	Ambient Temp.	-10℃~ +70℃
Scanning Form	Line by line	Storage Temperature	-40℃~ +80℃
Response Time	10~50msec(relating to detecting points of scanning cycle)	Size	12(16)22(37)1820(2000)mm
Response Time	10~50msec(relating to detecting points of scanning cycle)	Installation	5 screw fitting holes with accessory (refer to pictures)
Highest Beams Spot	1655mm(ES16154)1728mm(ES3000+）	Installation	5 screw fitting holes with accessory (refer to pictures)
Detecting Range	0～6.0m moving door	Indicator	Power (green LED)
Light Immunity	80,000lux(visible light)	Indicator	System fault/beams blocked(orange LED)
Allowable Deviation Angle	≤10°	Shell Material	Aluminum alloy surface of anodizing (black)or matt spray plastic(black)
Allowable Deviation Position	Vertical: ±50mm	Shell Material
Allowable Deviation Position	Horizontal: ±5mm	Shell Cover (light filter)	Embedded installation of infrared penetrating for blocking off non-infrared
Protecting States	Cable fault	Shell Cover (light filter)
Protecting States	Power fault	Authentication	CE(EMC)
Working Voltage	12V(minimum8V, maximum30V)

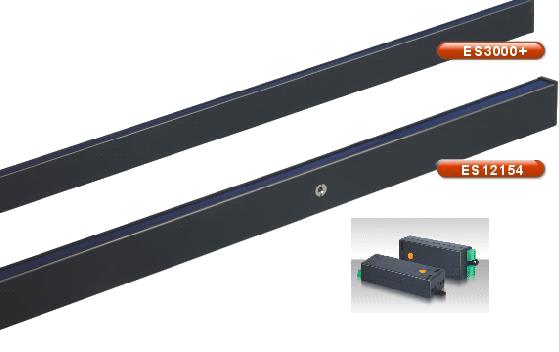

Model No:	ES3000+/ES12154
Brand Name:	ANT
