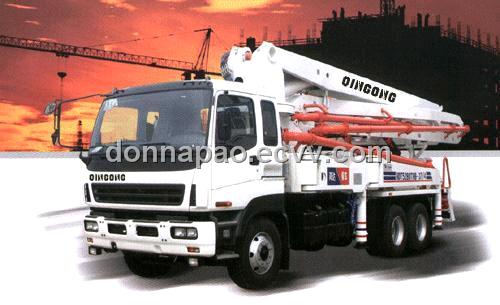

37m Truck-mounted concrete pump HDT5291THB-37/4
Main Technical Parameters In Service
Output in theory: 125 m3/h
Pumping capacity index: 586 Mpa.M3/h
Max. Pumping pressure: 8.5 Mpa
Hopper capacity: 700 L
Feeding height: 1370 mm
Model of distributing valve: S-pipe valve
Max. Distributing radius: 32.6 m
Max. Distributing height: 36.6 m
Max. Distributing depth: 25.5 m
Height of boom when stretched: 8450 mm
Distance between front landing legs: 7058 mm
Distance between rear landing legs: 6848 mm
Distance between front & rear landing legs: 6790 mm
Diameter of delivery pipe: 125 mm
Length of tail pipe: 4 m
Rotary angle of boom: 365°
Number of boom sections: 4
Rotary angle of each boom section: 92/180/180/270°
Close-control distance: 33 m
Remote-control distance: 200 m
---Main Technical Parameters in Driving Condition
Max. Traveling speed: 90 km/h
Min. Turning radius: 8800 mm
Brake distance: 7 m
Approach angle: 16 °
Departure angle: 11°
Chassis model: HOWO ZZ5307N4647W/SOW (371 hp engine)
Wheel base between the first & the second axle: 4600 mm
Wheel base between the second & the third axle: 1350 mm
Front tread: 2022 mm
Rear tread: 1830 mm
Max. Engine power: 247(2200r/min) kw
Max. Engine torque: 1350(1100-1600r/min) n.M
Max. Grade ability: 35 %
Fuel consumption: 34 L/100km
Overall dimension(L×W×H): 12000×2490×3850 mm
Total weight: 29000 kg
42m Truck-mounted concrete pump HDT5350THB-42/4
---Main Technical Parameters In Service
Output in theory: 125 m3/h
Pumping capacity index: 586 Mpa.M3/h
Max. Pumping pressure: 8.5 Mpa
Hopper capacity: 700 L
Feeding height: 1370 mm
Model of distributing valve: S-pipe valve
Max. Distributing radius: 32.6 m
Max. Distributing height: 36.6 m
Max. Distributing depth: 25.5 m
Height of boom when stretched: 8450 mm
Distance between front landing legs: 7058 mm
Distance between rear landing legs: 6848 mm
Distance between front & rear landing legs: 6790 mm
Diameter of delivery pipe: 125 mm
Length of tail pipe: 4 m
Rotary angle of boom: 365°
Number of boom sections: 4
Rotary angle of each boom section: 92/180/180/270°
Close-control distance: 33 m
Remote-control distance: 200 m
---Main Technical Parameters in Driving Condition
Max. Traveling speed: 85 km/h
Min. Turning radius: 12100 mm
Brake distance: 10 m
Approach angle: 16°
Departure angle: 11°
Chassis model: HOWO ZZ5437S4667W (371 hp engine)
Wheel base between the first & the second axle: 1800 mm
Wheel base between the second & the third axle: 4600 mm
Wheel base between the third & the fourth axle: 1350 mm
Front tread: 2022 mm
Rear tread: 1830 mm
Max. Engine power: 275(2200r/min) kw
Max. Engine torque: 1500 /(1100~1600 r/min) n.M
Max. Grade ability: 37%
Fuel consumption: 38 L/100km
Overall dimension(L×W×H): 13650×2490×3960 mm
Total weight: 35000 kg
45m Truck-mounted concrete pump HDT5401THB-45/5
---Main Technical Parameters In Service
Output in theory: 125 m3/h
Pumping capacity index: 586 Mpa.M3/h
Max. Pumping pressure: 8.5 Mpa
Hopper capacity: 700 L
Feeding height: 1400 mm
Model of distributing valve: S-pipe valve
Max. Distributing radius: 40.7 m
Max. Distributing height: 44.7 m
Max. Distributing depth: 31.3 m
Height of boom when stretched: 8495 mm
Distance between front landing legs: 9550 mm
Distance between rear landing legs: 9550 mm
Distance between front & rear landing legs: 9190 mm
Diameter of delivery pipe: 125 mm
Length of tail pipe: 3 m
Rotary angle of boom: 365°
Number of boom sections: 5
Rotary angle of each boom section: 91/180/180/180/270°
Close-control distance: 33 m
----Main Technical Parameters in Driving Condition
Max. Traveling speed: 80km/h
Min. Turning radius: 12100 mm
Brake distance: 10 m
Approach angle: 16°
Departure angle: 11°
Chassis model: HOWO ZZ5437S4667W (371 hp engine)
Wheel base between the first & the second axle: 1800 mm
Wheel base between the second & the third axle: 4600 mm
Wheel base between the third & the fourth axle: 1350 mm
Front tread: 2022 mm
Rear tread: 1830 mm
Max. Engine power: 275(2200r/min) kw
Max. Engine torque: 1500 /(1100~1600 r/min) n.M
Max. Grade ability: 35%
Fuel consumption: 40 L/ 100km
Overall dimension(L×W×H): 13300×2500×4000 mm
Total weight: 40000 kg
48m Truck-mounted concrete pump HDT5401THB-48/5
---Main Technical Parameters In Service
Output in theory: 125 m3/h
Pumping capacity index: 586 Mpa.M3/h
Max. Pumping pressure: 8.5 Mpa
Hopper capacity: 700 L
Feeding height: 1400 mm
Model of distributing valve: S-pipe valve
Max. Distributing radius: 43.7 m
Max. Distributing height: 47.7 m
Max. Distributing depth: 34.3 m
Height of boom when stretched: 9065 mm
Distance between front landing legs: 9780 mm
Distance between rear landing legs: 9860 mm
Distance between front & rear landing legs: 9470 mm
Diameter of delivery pipe: 125 mm
Length of tail pipe: 3 m
Rotary angle of boom: 365°
Number of boom sections: 5
Rotary angle of each boom section: 91/180/180/180/270°
Close-control distance: 33 m
Remote-control distance: 200 m
---Main Technical Parameters in Driving Condition:
Max. Traveling speed: 85 km/h
Min. Turning radius: 12000 mm
Brake distance: 10 m
Approach angle: 16°
Departure angle: 11°
Chassis model: HOWO ZZ5437S4667W (371 hp engine)
Wheel base between the first & the second axle: 1800 mm
Wheel base between the second & the third axle: 4600 mm
Wheel base between the third & the fourth axle: 1350 mm
Front tread: 2022 mm
Rear tread: 1830 mm
Max. Engine power: 275(2200r/min) kw
Max. Engine torque: 1500 /(1100~1600 r/min) n.M
Max. Grade ability: 37%
Fuel consumption: 40 L/ 100km
Overall dimension(L×W×H): 13300×2500×4000 mm
Total weight: 40000 kg
| Place of Origin: | Shandong in China |
| Brand Name: | HOWO |
| FOB Price: | 200000-500000 USD Qingdao port |
| Payment Terms: | L/C,T/T(Bank Transfer), |
| Minimum Order: | Piece/Pieces 1 |
| Supply Ability: | Piece/Pieces|100|Month |
| Package: | non-packed |
| Delivery Time: | 35 days after receiving 30% deposite |
