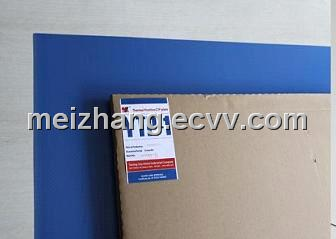

Taiyang Thermal Positive offset plate for imaging on
CTP platesetter. The coating is sensitive to infrared diode laser (IR) at 830 nm. For medium-long runs.
Our own produced coating offers Excellent consistent performance, High sensitivity and resolution, Superior runability and Wide developing Latitude.
Plate type: Taiyang Thermal positive CTP plate
Substrate: Electro-chemically grained and anodized aluminum
Gauge: 0.15mm, 0.25mm, 0.3mm
Exposure energy: 120-140mJ/cm2
Resolution: DOT reproduction 1%-99% at 200lpi
Thermal Platesetters: 830nm laser CTP Platesetter
Accredited Developers: Taiyang, Kodak or Agfa developer
Developing temperature: 23 - 28 degree
Developing time: 25 - 35 seconds
Run length: Unbaked over 100, 000
Shelf life: 12 months
Storage and handling: 10 - 30 degree, humidity below 65%. Cargo should be filled in air-conditioned container for sea shipment.
