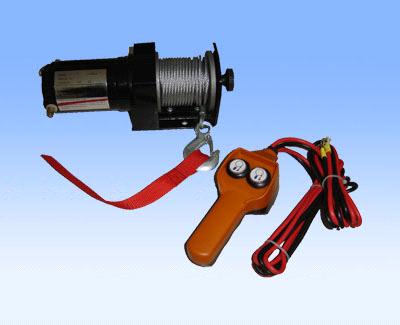

ATV Winch - LD2000-A

ATV Winch - LD2000-A

Contact Now

Detailed Product Description

LD2000-A
Performance	12V
Rated line pull	2000lb(907kg)
Motor	1.0hp
Gearing	Differential Planetary
Gear ratio	153:1
Wire rope	5/32" x 25'(4mmx15.2m)
Dimensions	L x W x H (285 x 105 x 105mm)
Drum Diameter	1.25"(31.75mm)
NW/GW	20KG / 22KG(4pc)
Meas	48 x 34 x 34cm (4pc)

Electric winch wih permanent magnetic motor

Model	Capcity	Power	Steel cable	Size (L X W X H)	NW
LD2000-A	2000LB	DC12V	F4mm X 15.2m	285 x 105 x105mm	5KG

Pull, Speed, Amperes, Volts (First Layer)

Line Pull (lbs./ kg)	Line Speed FPM(m/min)	Motor (Amps)
0	10.5ft (3.2m)	8
500 (227)	9.2ft (2.8m)	30
1,000 (454)	7.5ft (2.3m)	60
1,500 (680)	5.2ft (1.6m)	90

Line Pull And Rope Capacity In Layer

Layer	Rated Line Pull (lbs./kgs)	Tatal Rope On Drum (ft/m )
1	1500 (680)	6.5 (2.0)
2	1227 (557)	14.0 (4.3)
3	937 (425)	23.5 (7.2)
4	900 (408)	25.0 (7.6)

Pull, Speed, Amperes, Volts (First Layer)

Line Pull (lbs./ kg)	Line Speed FPM(m/min)	Motor (Amps)
0	10.5ft (3.2m)	8
500 (227)	9.2ft (2.8m)	30
1,000 (454)	7.2ft (2.2m)	60
1,500 (680)	5.2ft (1.6m)	90
2,000 (907)	2.9ft (0.9m)	120

Line Pull And Rope Capacity In Layer

Layer	Rated Line Pull (lbs./kgs)	Tatal Rope On Drum (ft/m )
1	2000 (907)	6.6 (2.0)
2	1630 (740)	14.0 (4.3)
3	1380 (620)	23.5 (7.2)
4	1190 (540)	35.0 (10.6)
5	1050 (470)	47.0 (14.4)
6	940 (420)	50.0 (15.2)

Place of Origin:	Zhejiang in China
Model No:	LD2000-A
